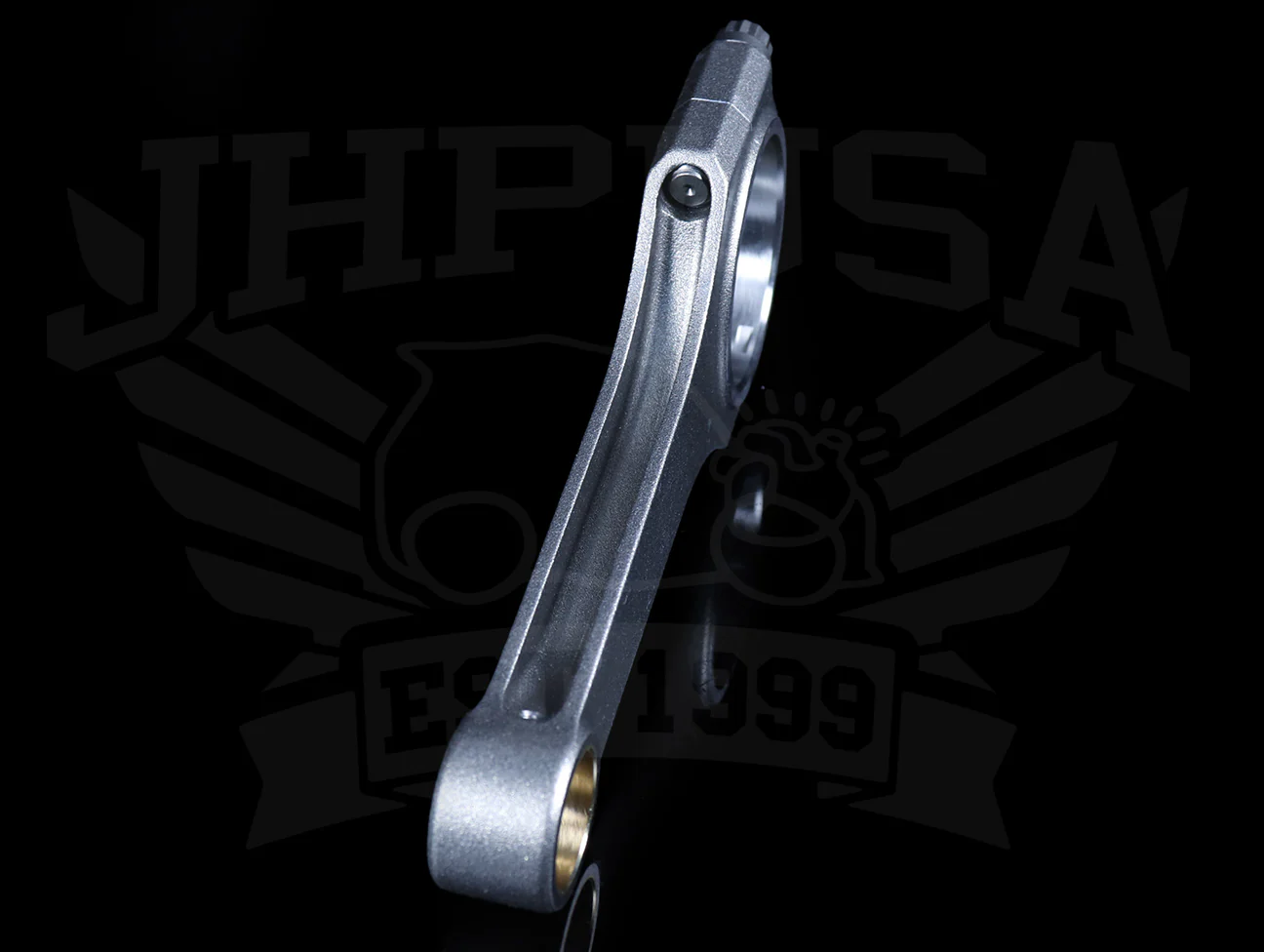

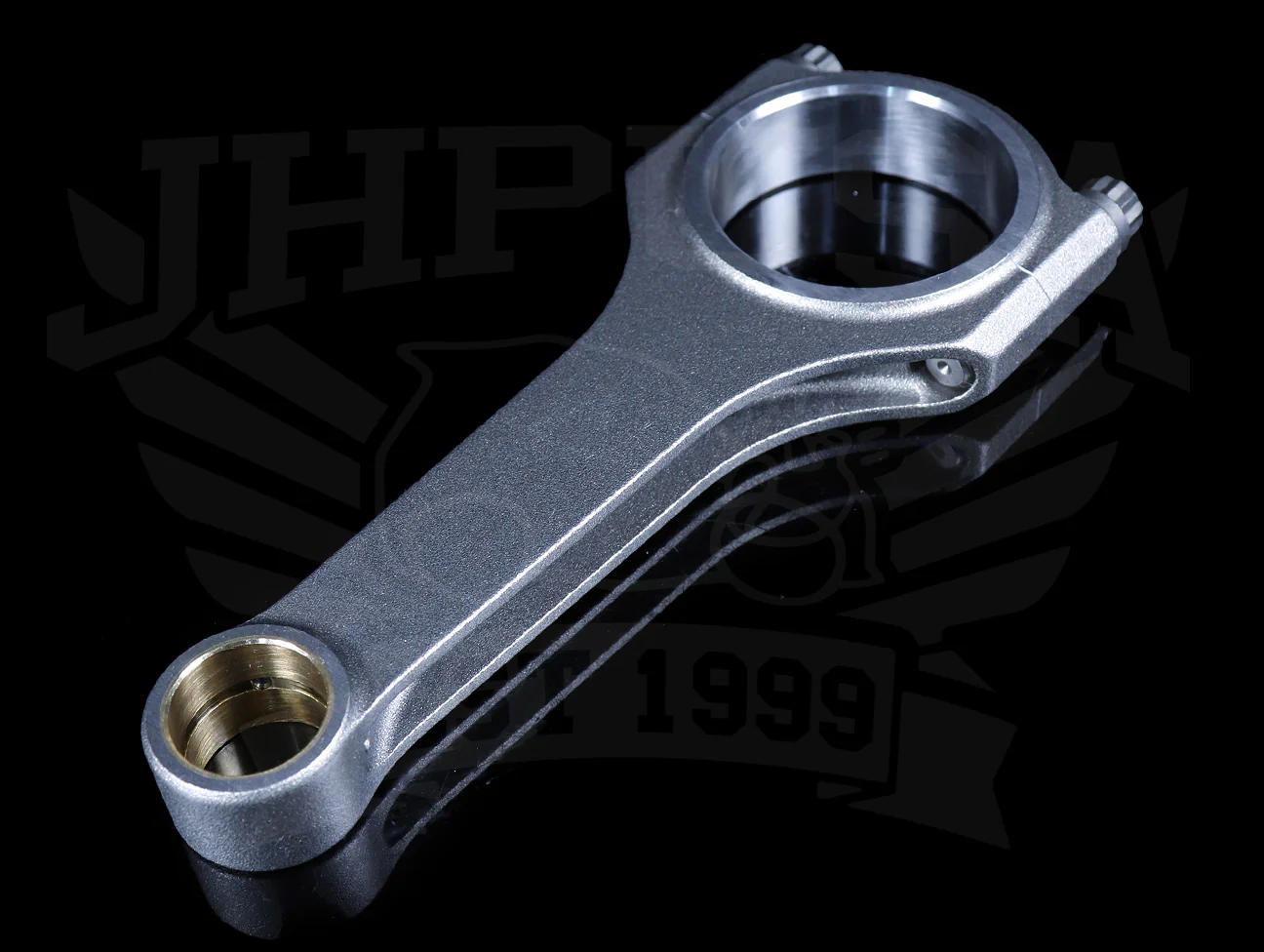

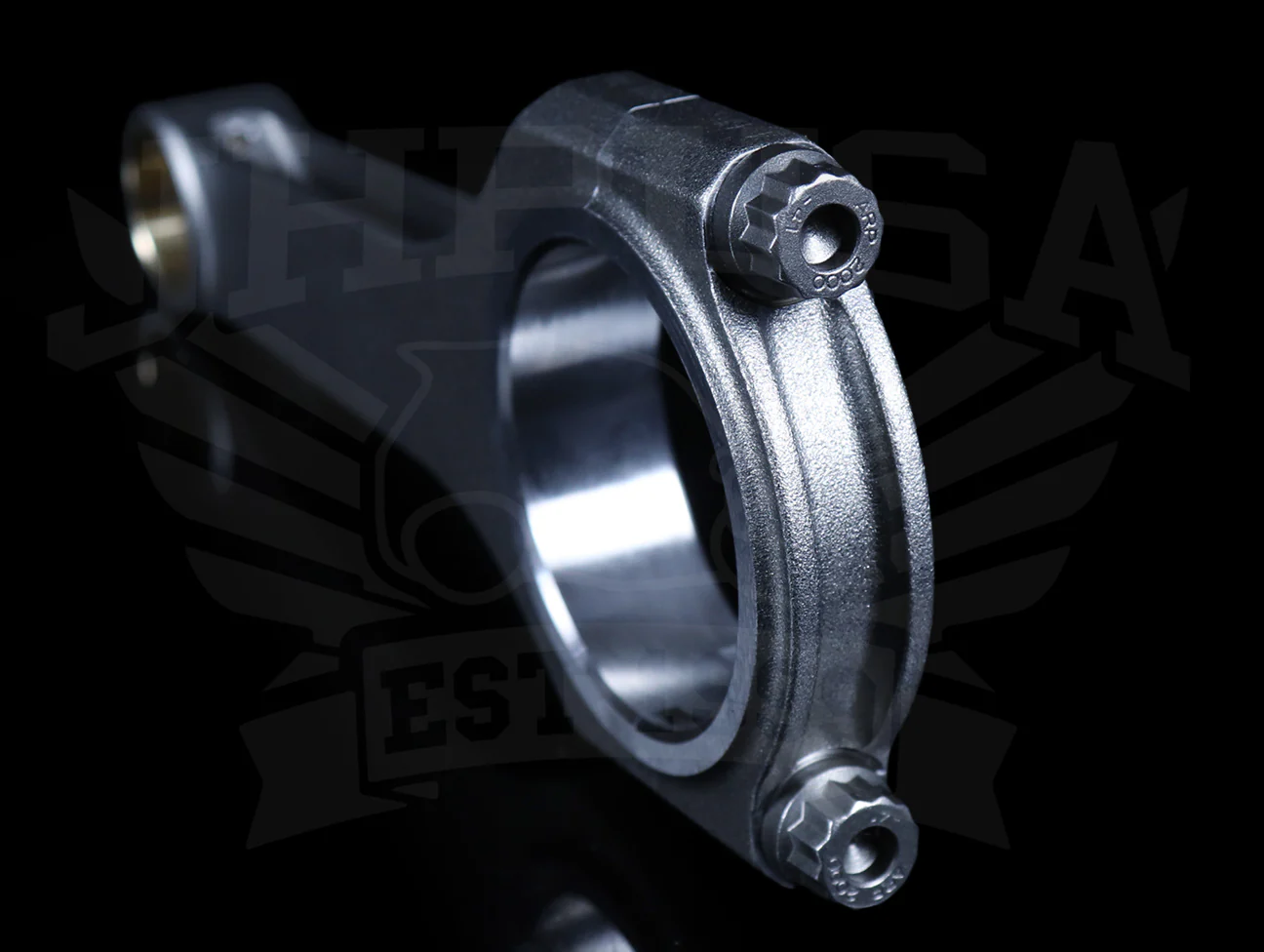

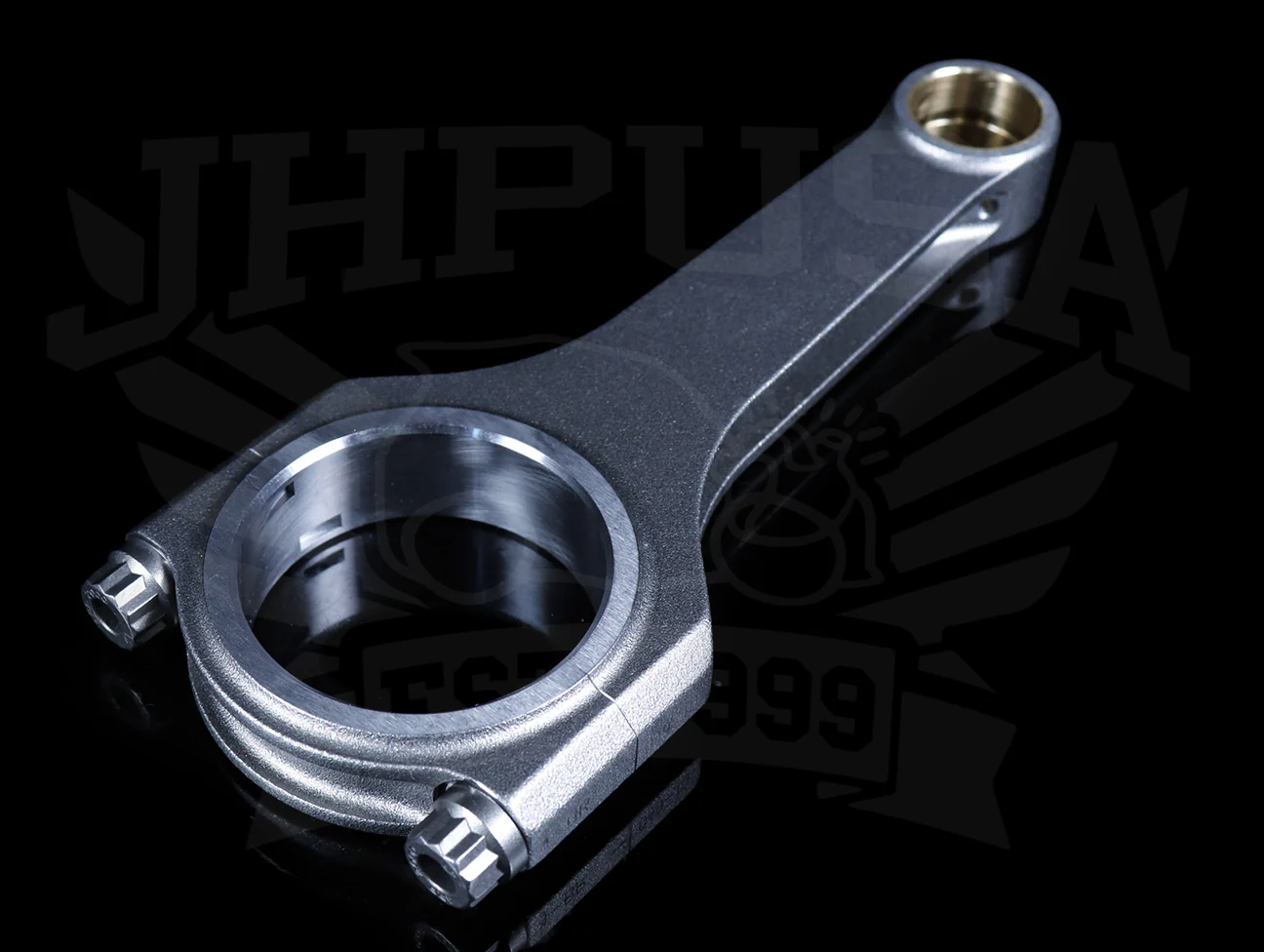

Supertech Forged Connecting Rods - Volkswagen

Supretech newly developed rods are manufactured from a high tensile strength 4340 alloy, offering excellent wear and fatigue resistance in optimal conditions.  Supertech rods feature an H-beam design and come with ARP 2000 bolts capable of achieving a clamp load of 220,000 psi. All  rods are design in house, using the latest cad and FEA software to ensure the highest quality rods on the market.

Features

• Forged Connecting Rod
• 4340 alloy
• H beam
• ARP 2000 bolts

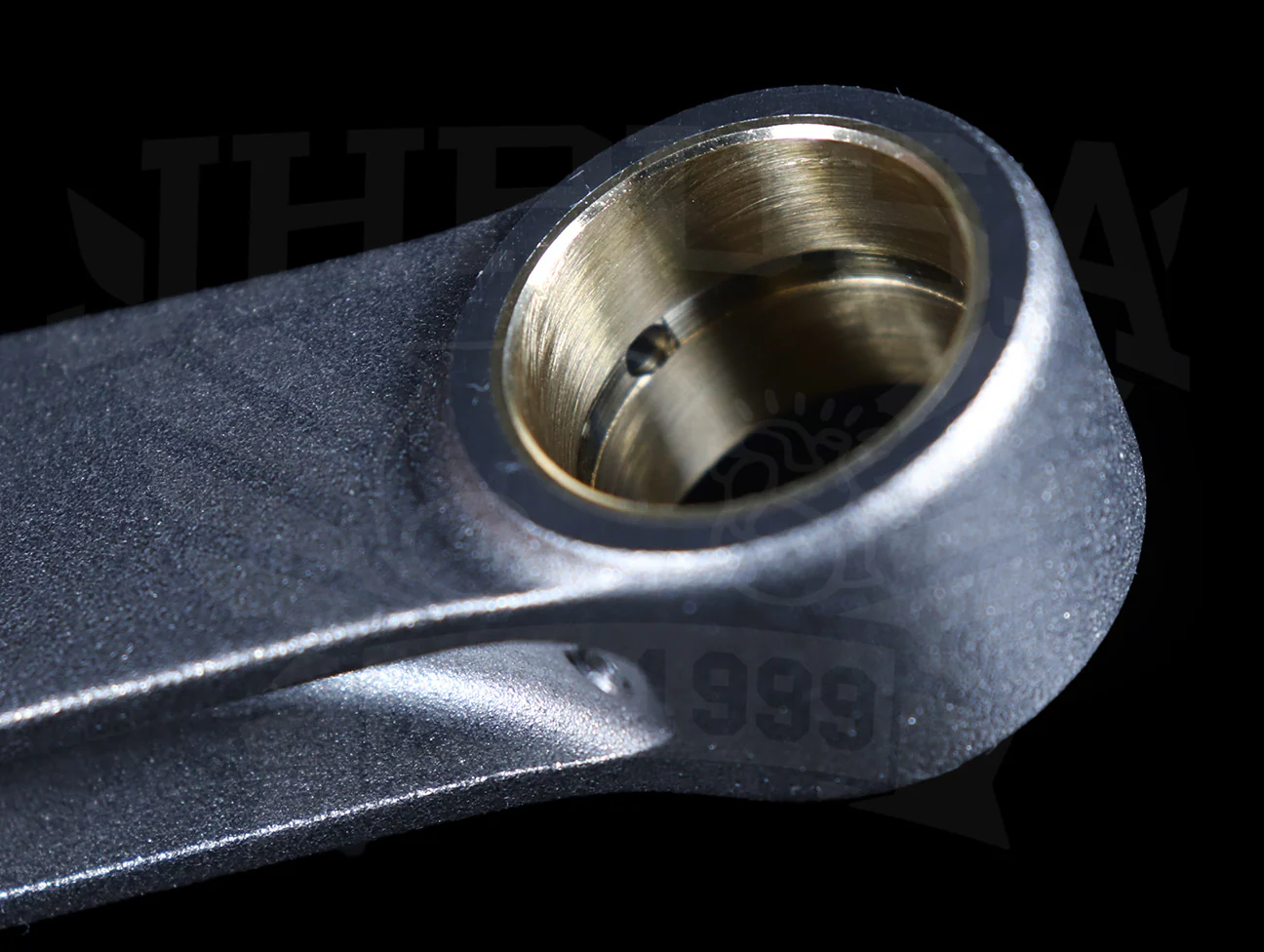

• Bronze Wrist Pin Bushings
• Fatter, H-Beam Design Without Drastic Weight Increase

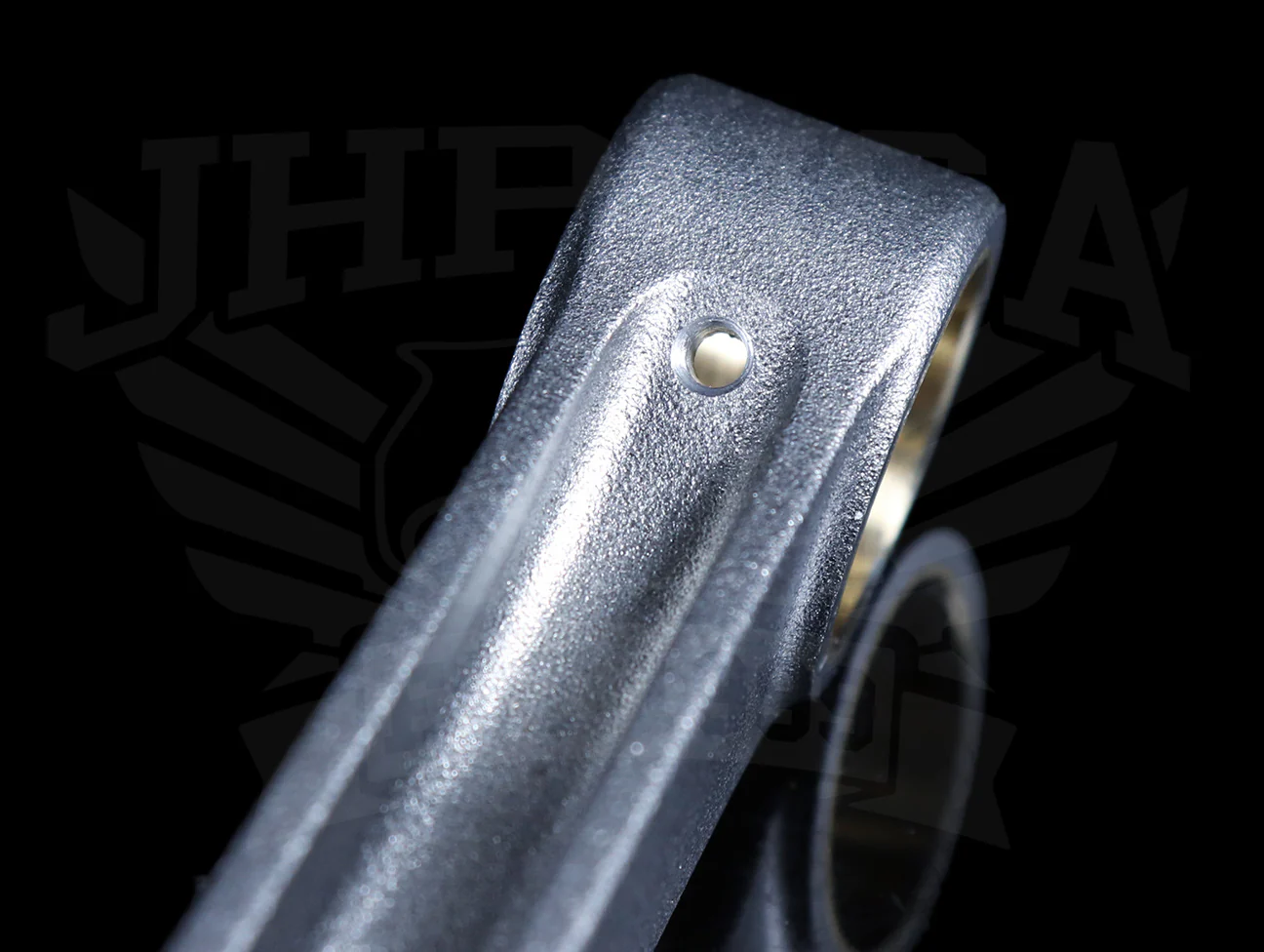

• Dual-Pin Oil Passages For Increased Lubrication And Strength

Rod Specs:

• C-C Length 144 mm

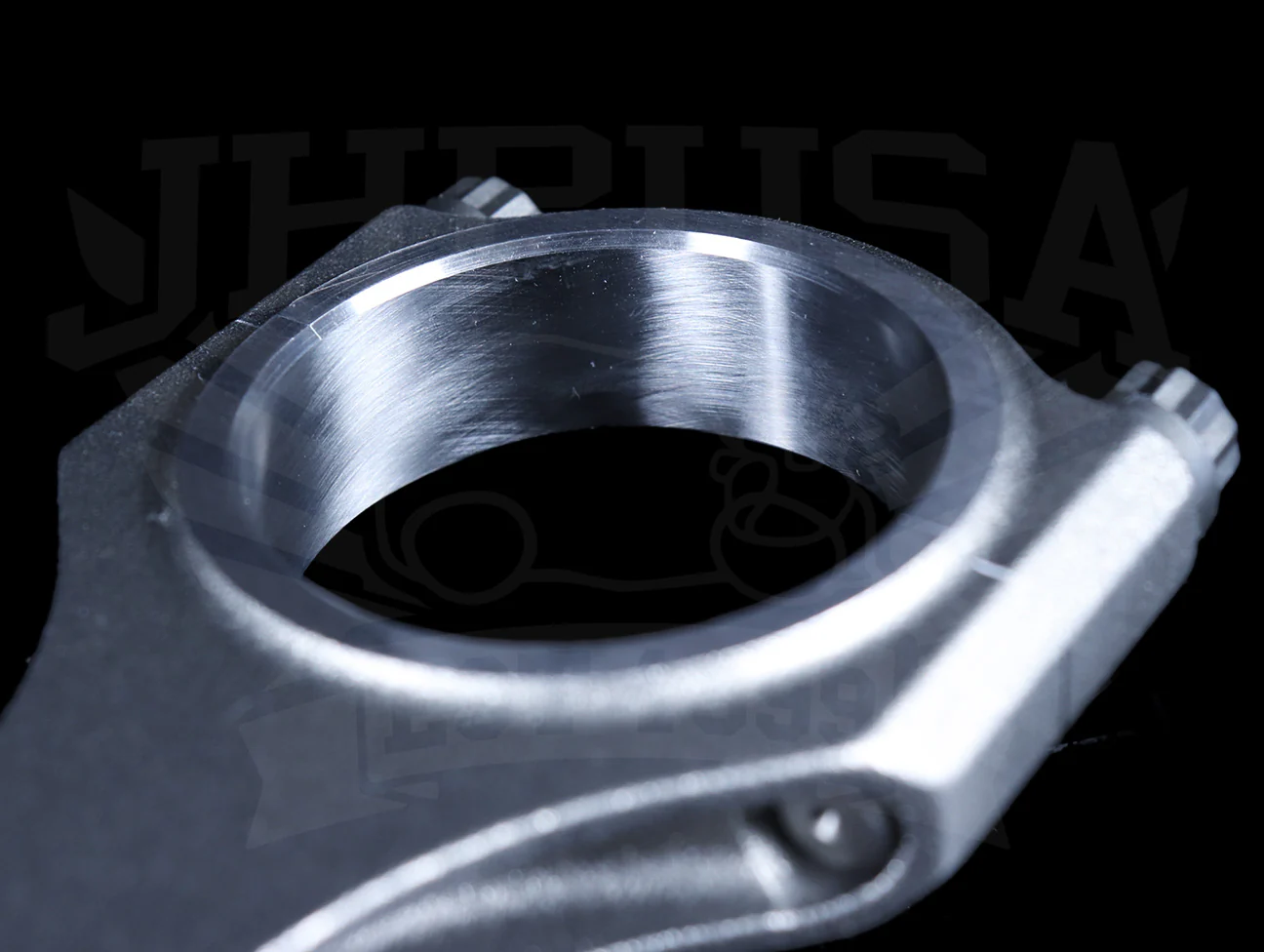

• BE bore: 50.617mm
• BE width: 24.9mm
• PE bore: 20mm full float
• PE width: 24.9mm straight
• 400hp rating

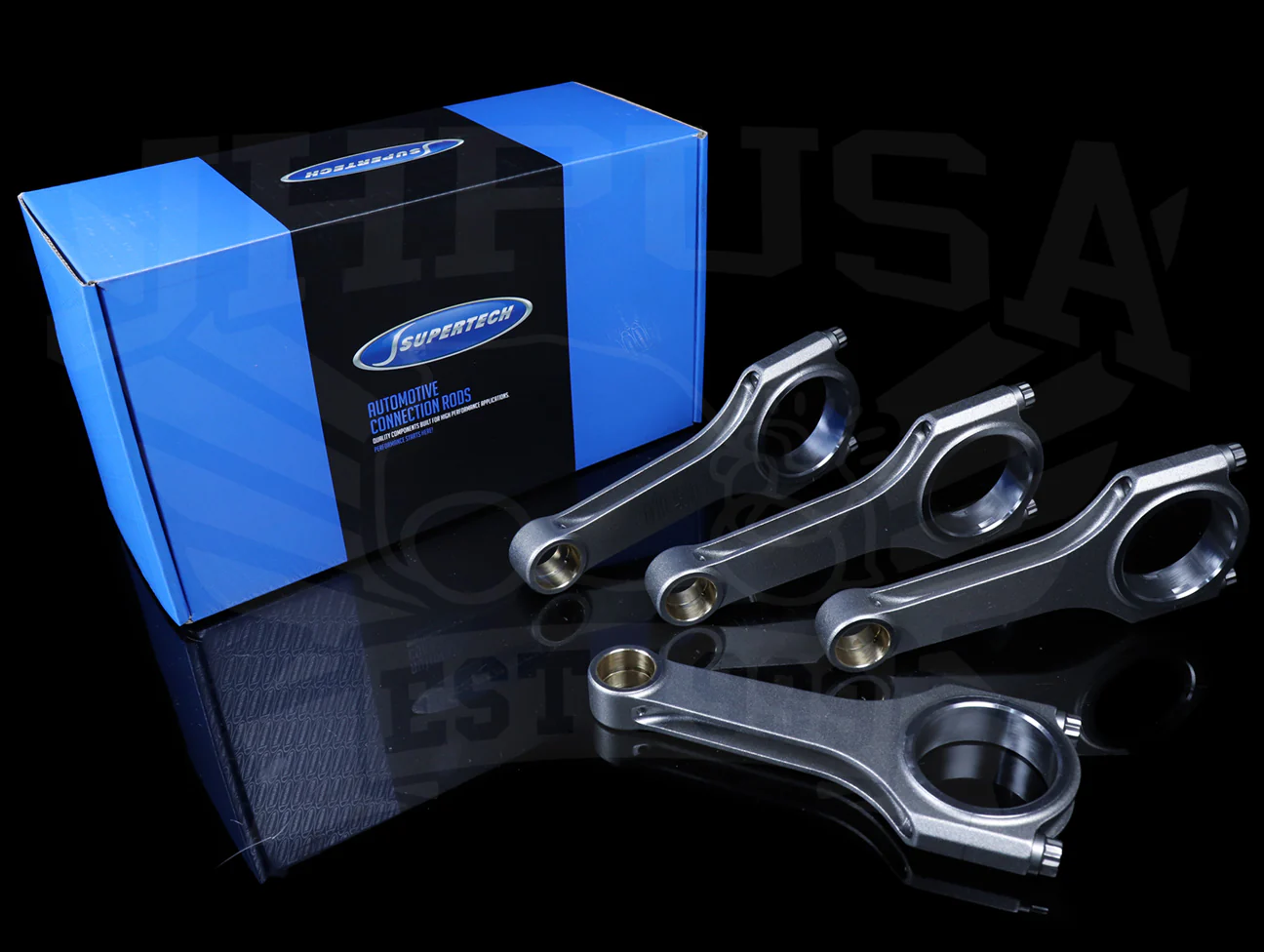

Sold as a full set (4 rods)

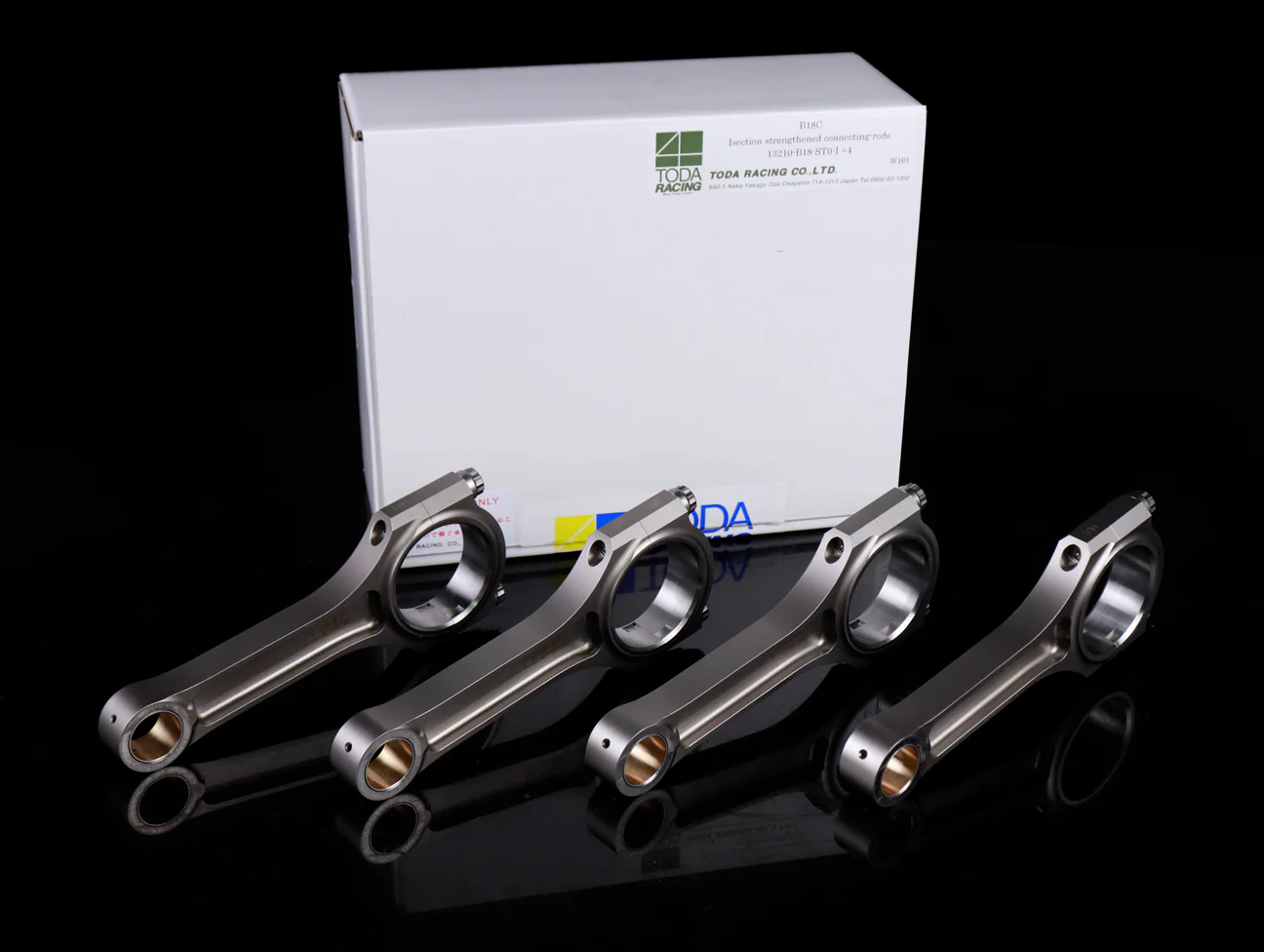

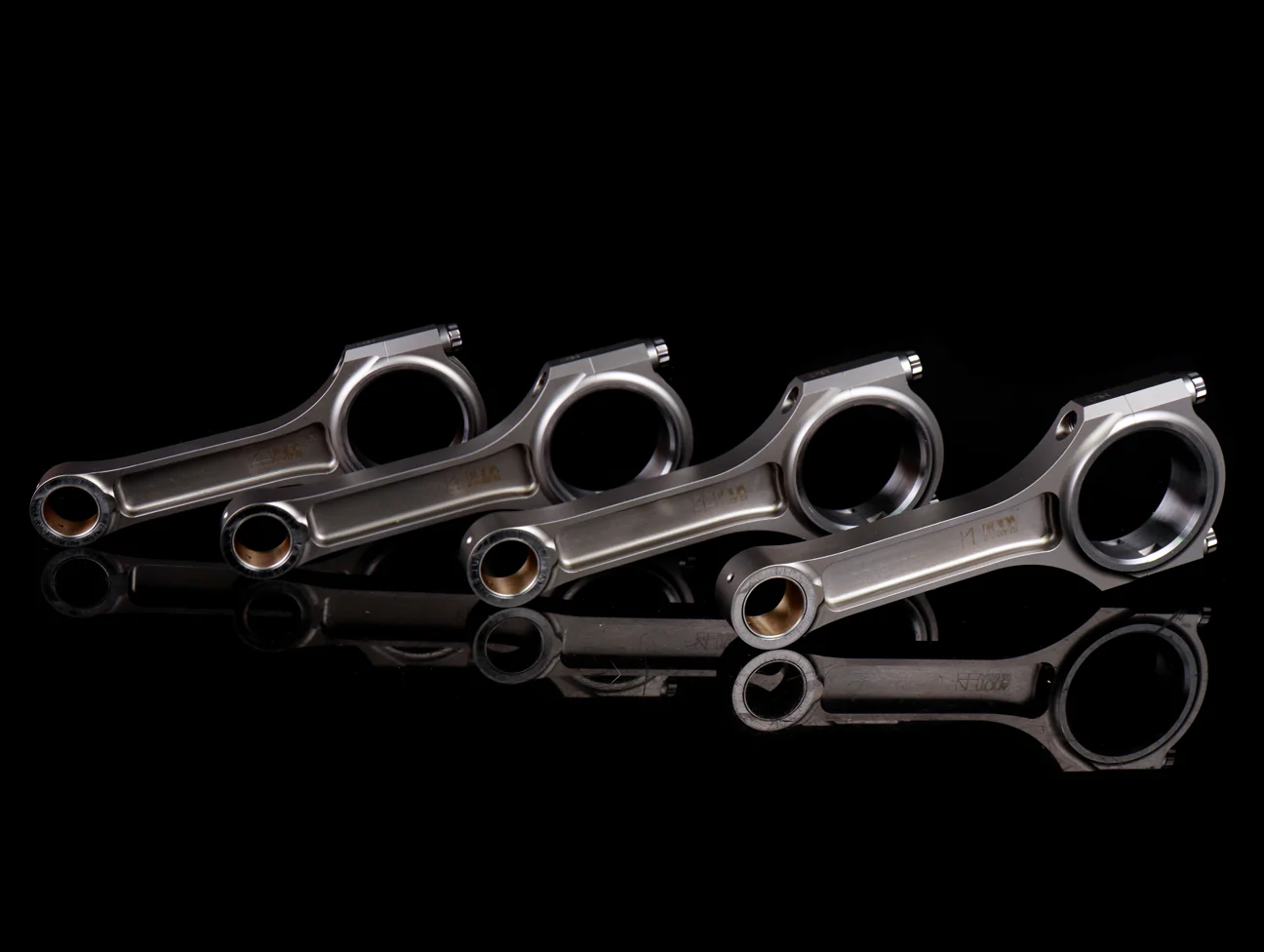

Photos used for illustration purposes. Actual product model may vary.
