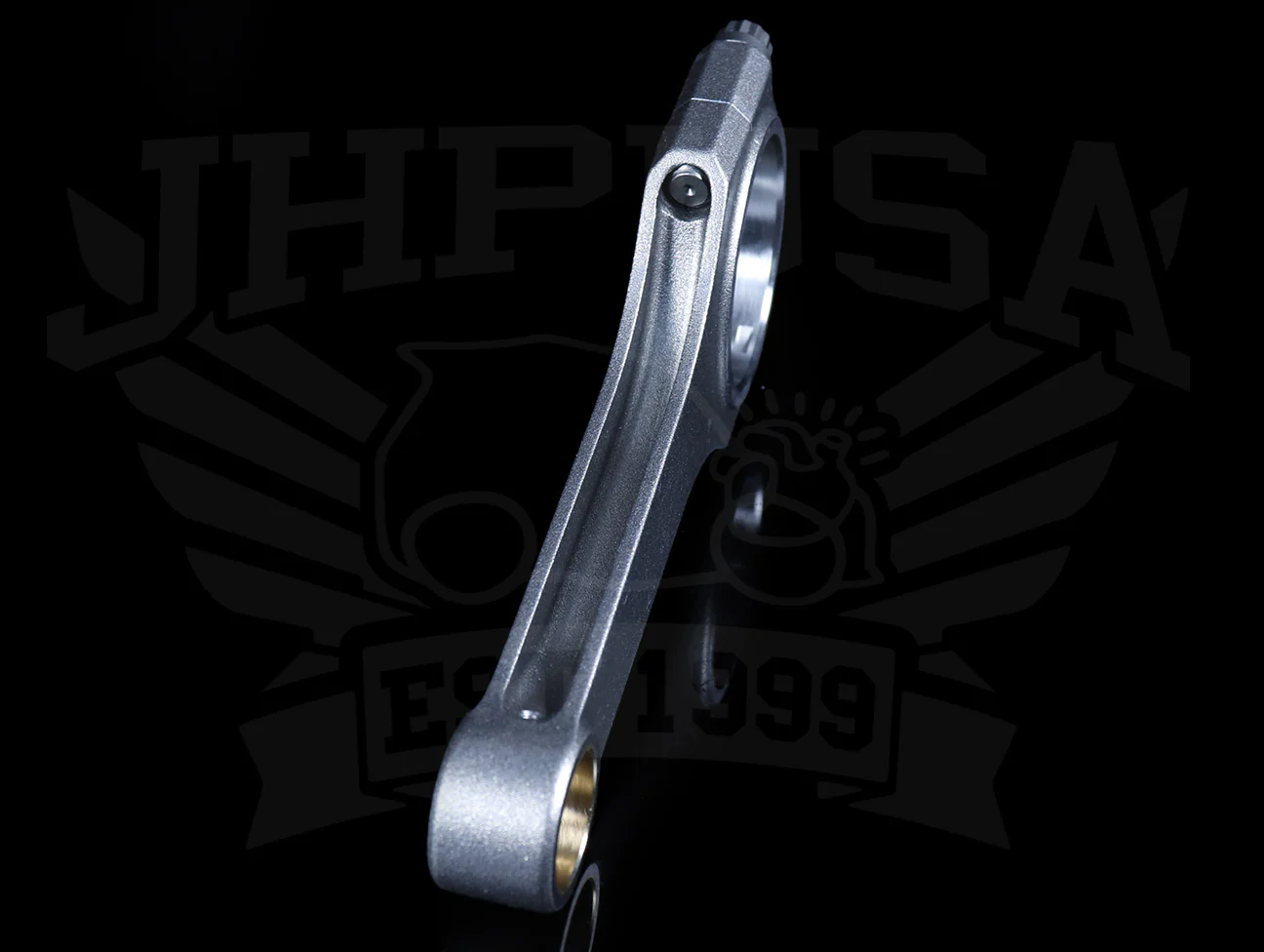

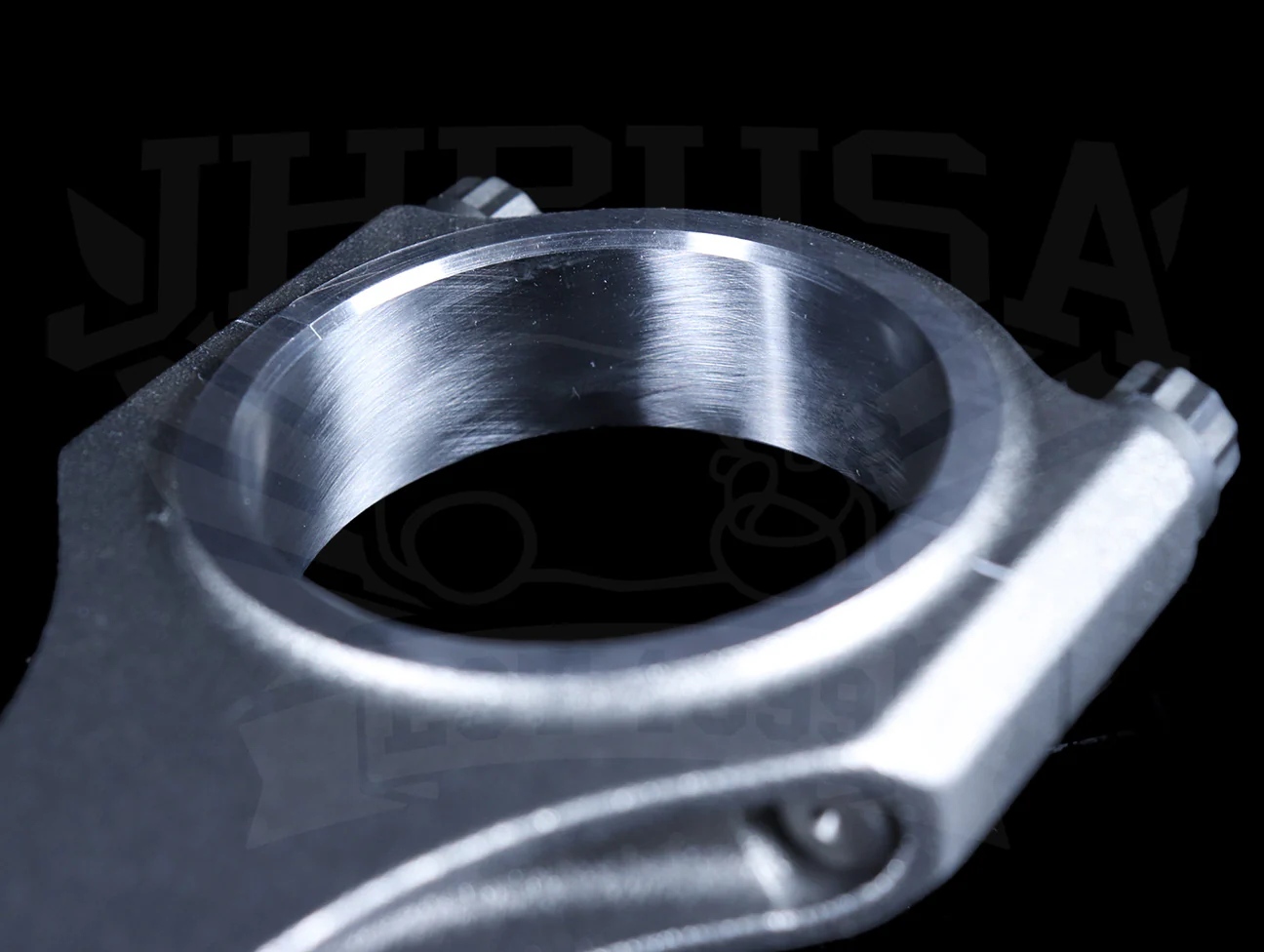

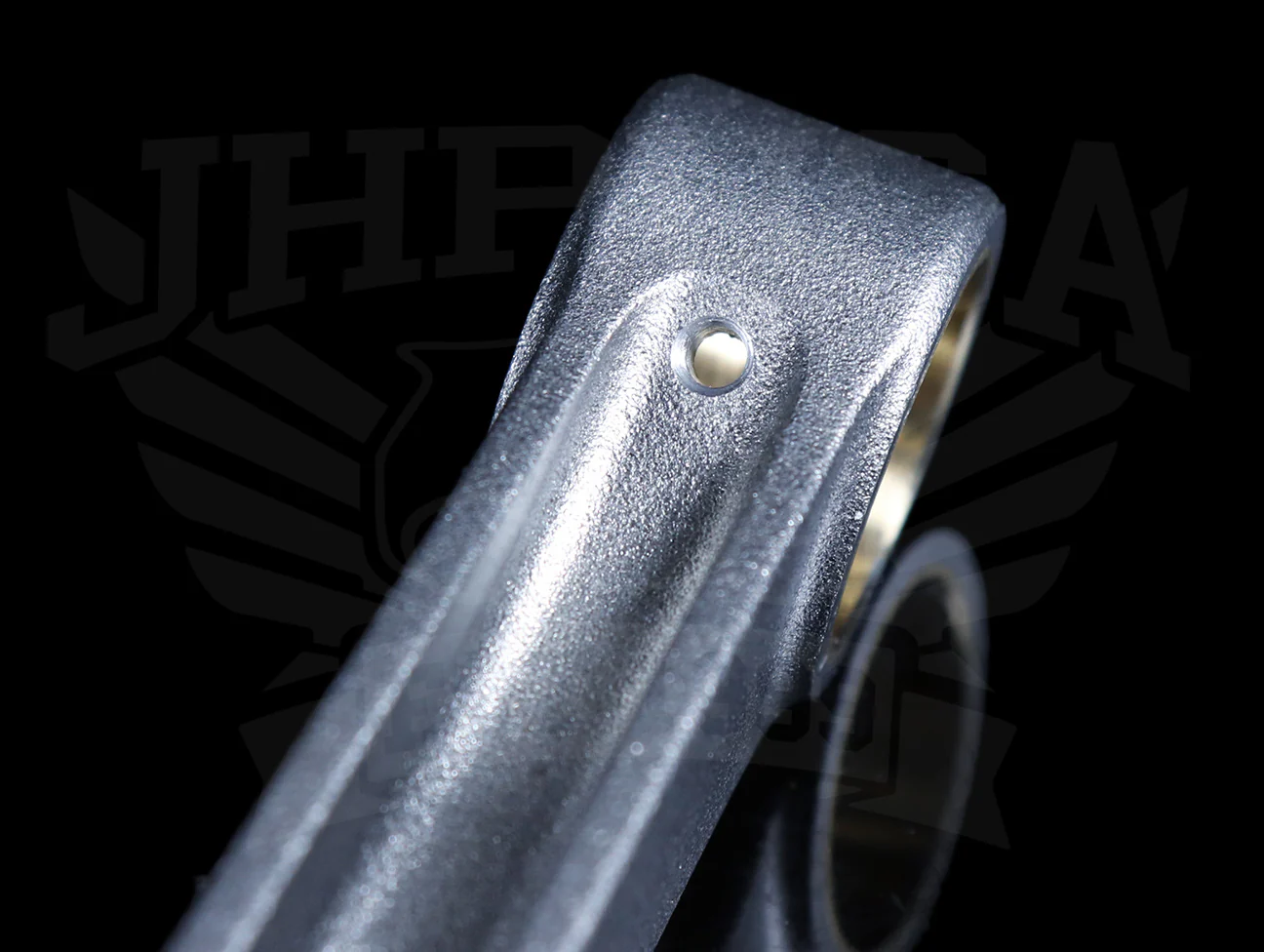

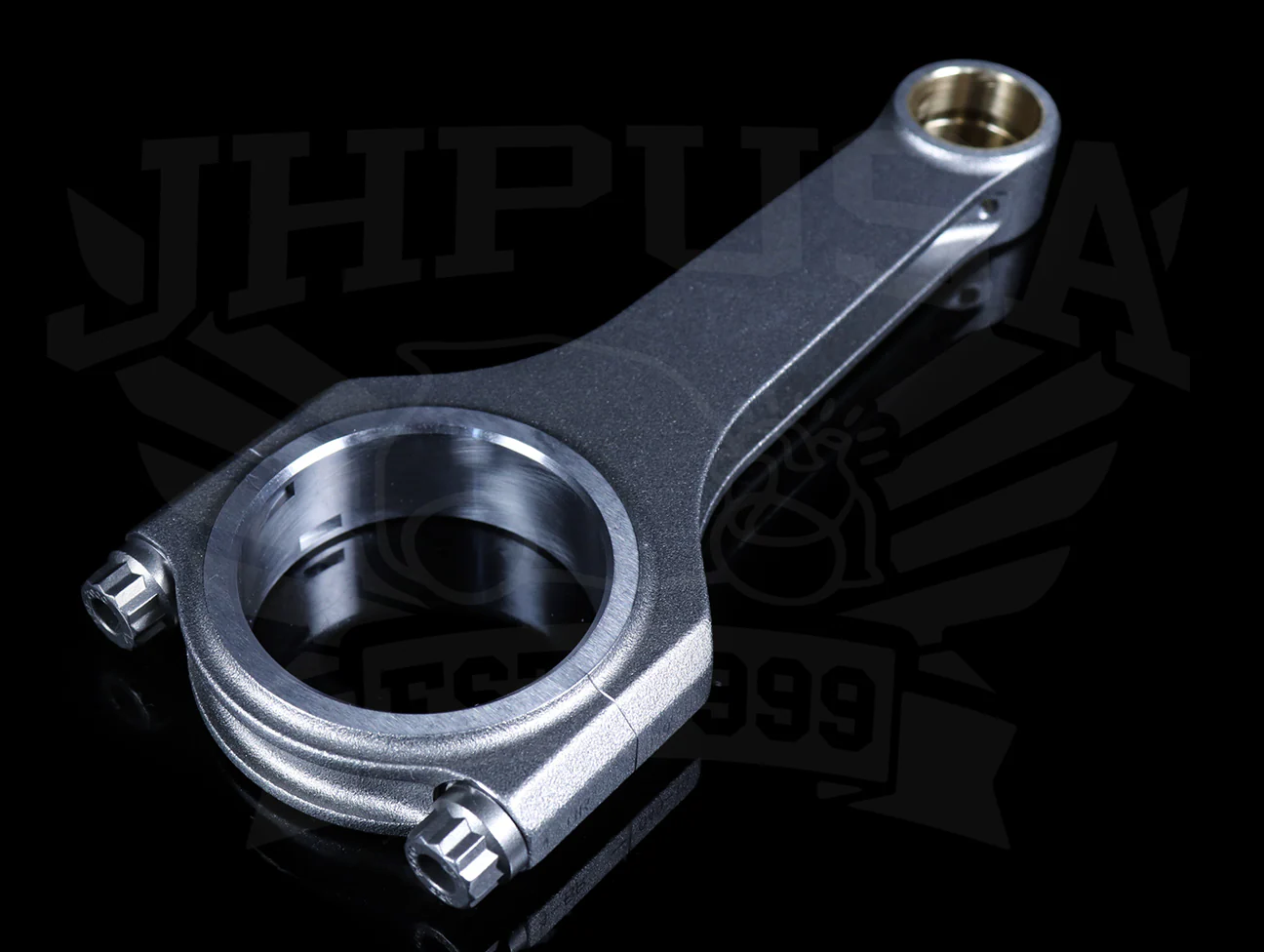

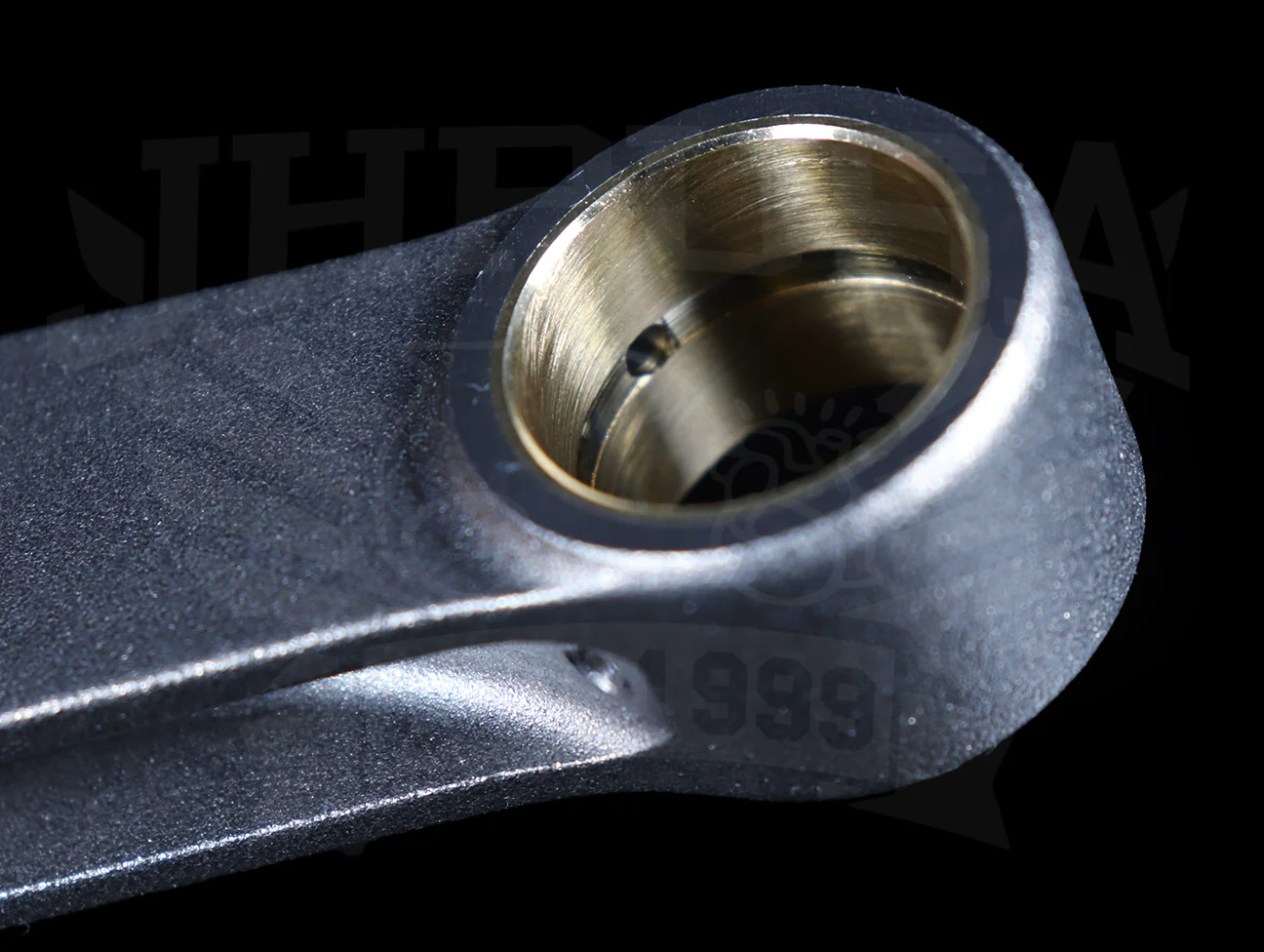

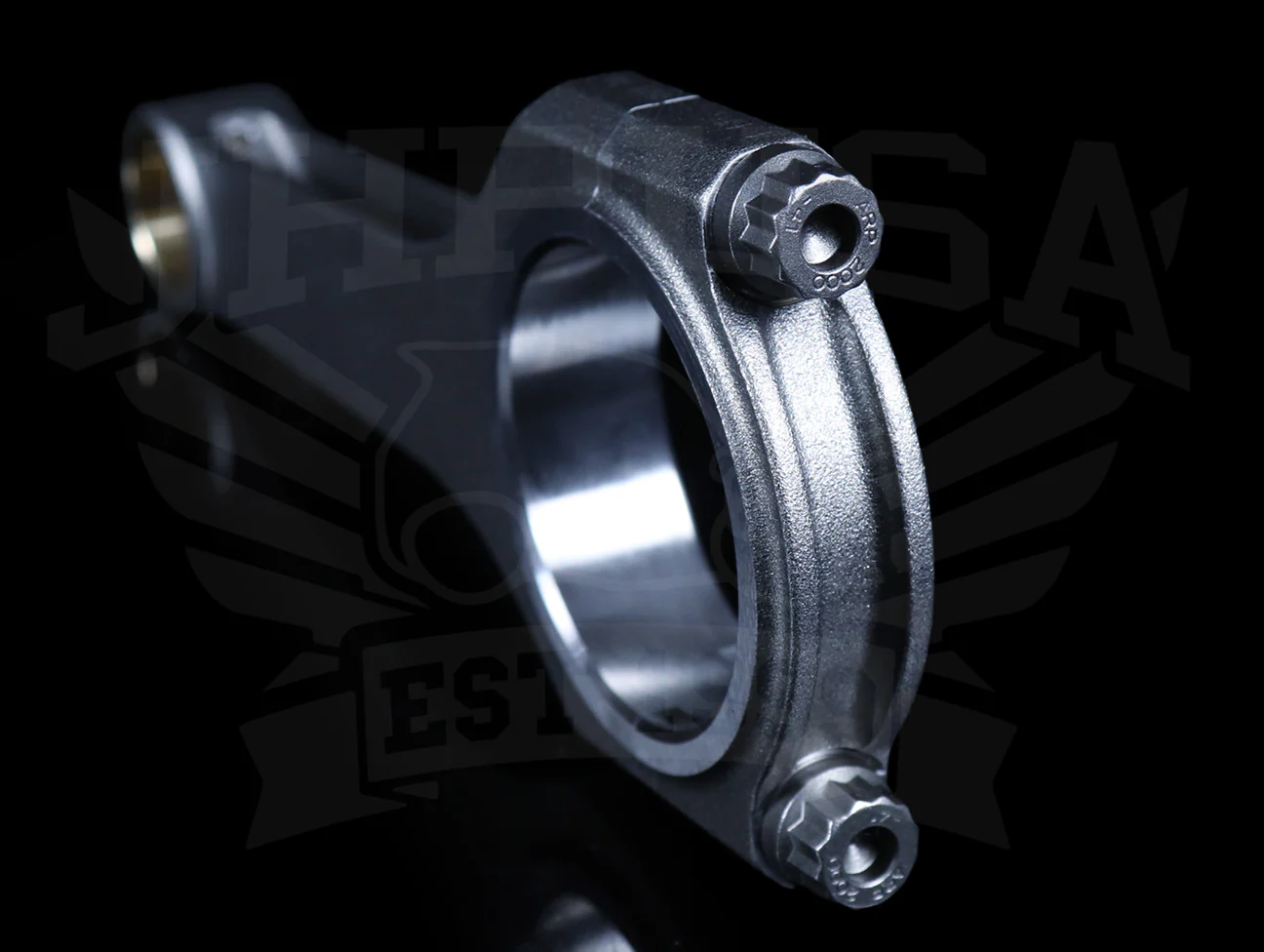

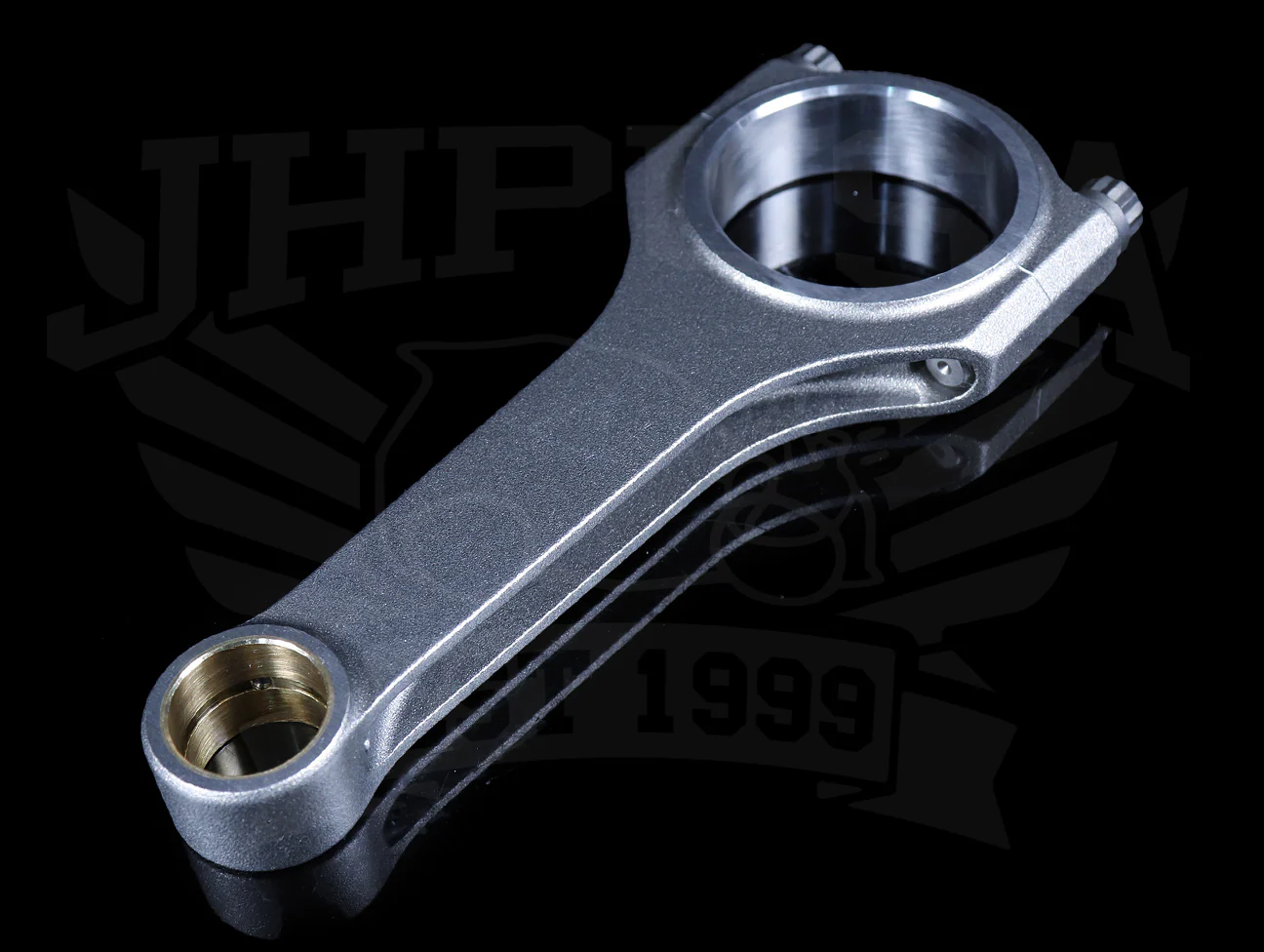

Supertech Forged Connecting Rods - Nissan KA24E/KA24DE

Supretech newly developed rods are manufactured from a high tensile strength 4340 alloy, offering excellent wear and fatigue resistance in optimal conditions.  Supertech rods feature an H-beam design and come with ARP 2000 bolts capable of achieving a clamp load of 220,000 psi. All  rods are design in house, using the latest cad and FEA software to ensure the highest quality rods on the market.

Features

• For Nissan K2A24E & KA24DE engines
• Forged Connecting Rod
• 4340 alloy
• H beam
• ARP 2000 bolts
• Bronze Wrist Pin Bushings
• Fatter, H-Beam Design Without Drastic Weight Increase
• Dual-Pin Oil Passages For Increased Lubrication And Strength

Rod Specs:

• C-C Length 165mm (5.906")
• BE bore: 53.0mm
• BE width: 24.7mm
• PE bore: 21mm full float
• PE width: 25.4mm straight
• 400hp rating

Sold as a full set (4 rods)

Photos used for illustration purposes. Actual product model may vary.
