$500.50The Story

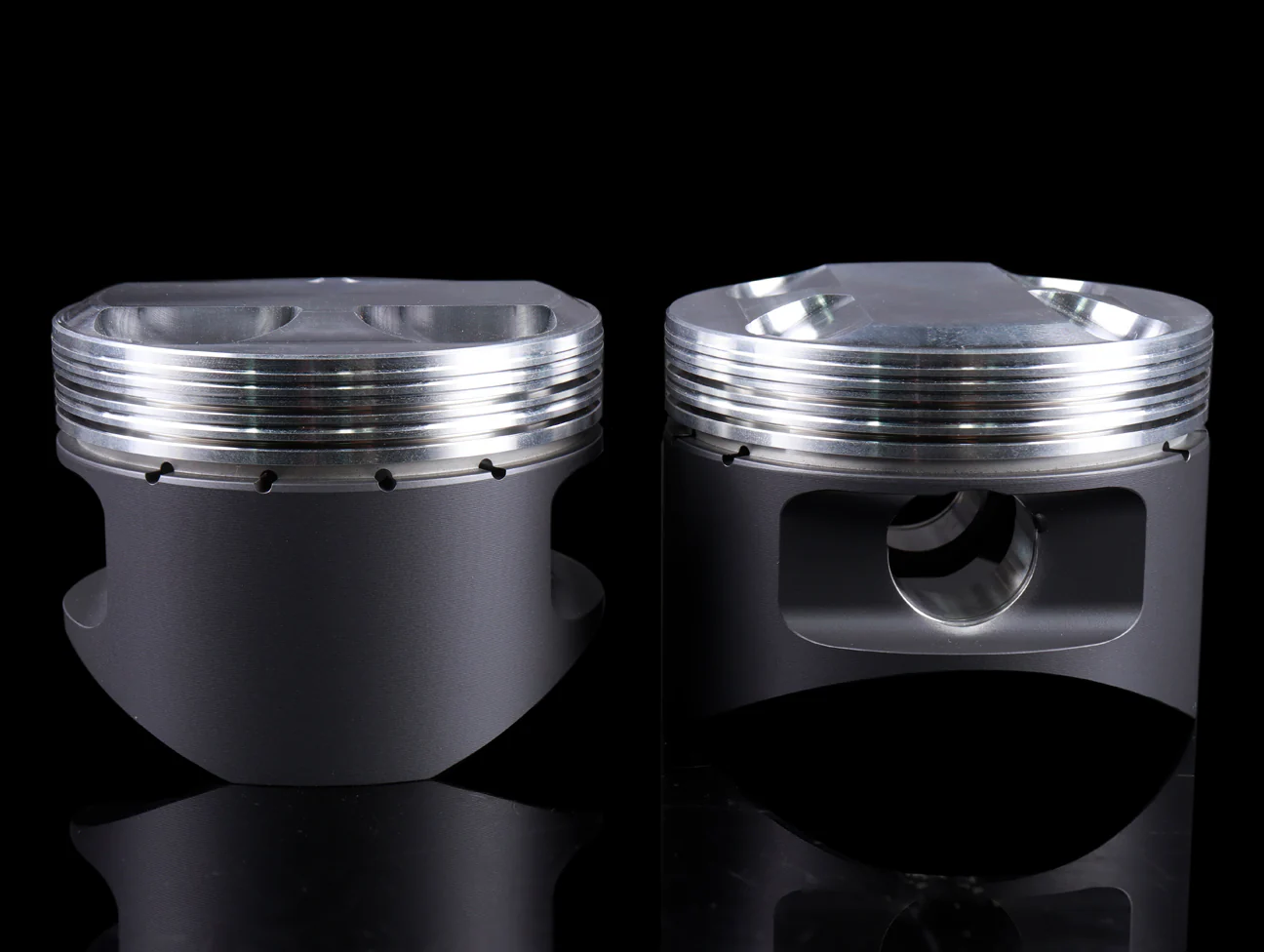

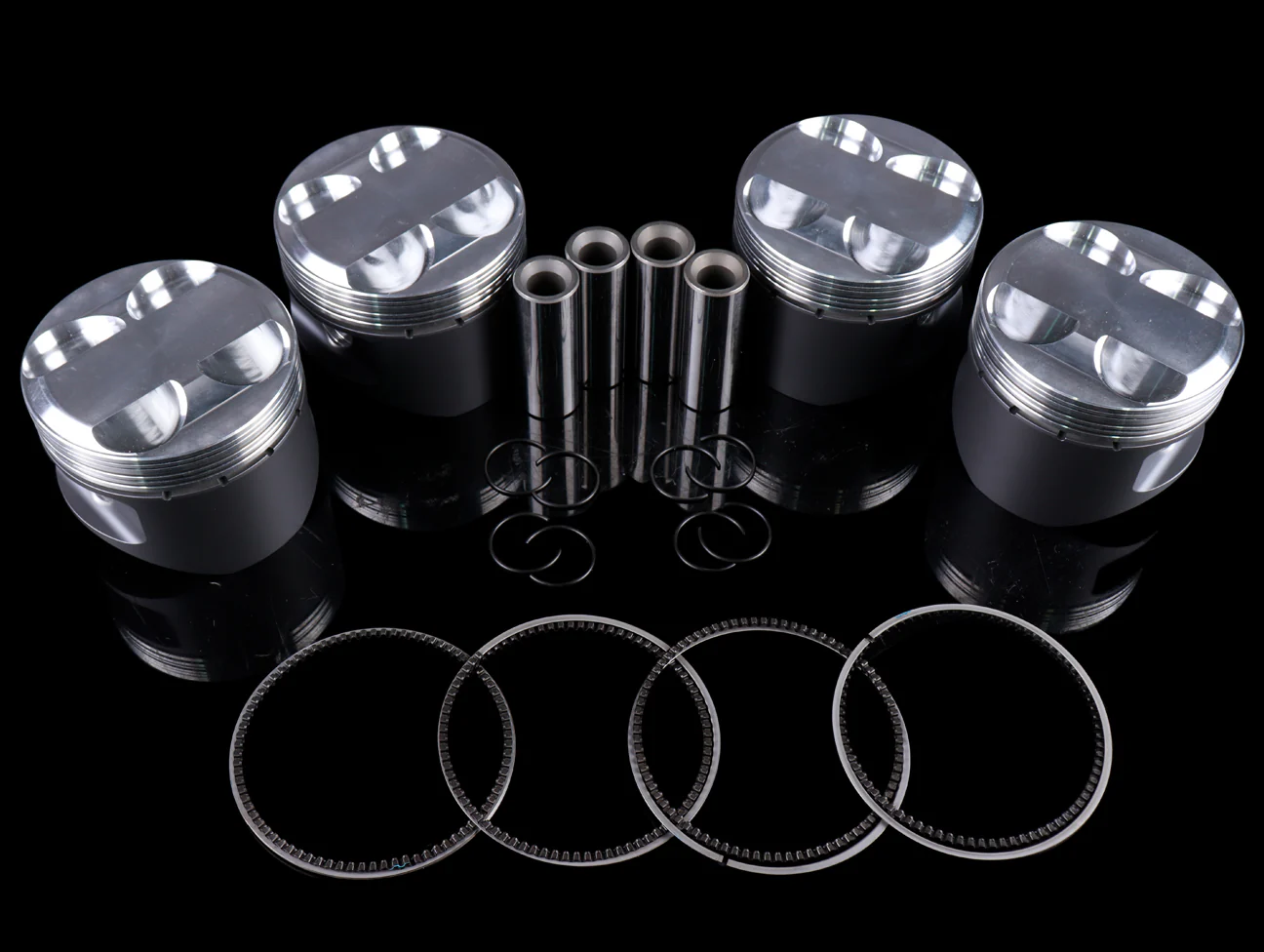

The Honda B series engine is still very popular around the world with lots of fans. Since the majority of these engines are of high mileage, customers can be concerned about its condition. Toda Racing has developed an overhaul (O/H) piston kit specifically for such engines. Designed with a longer skirt compared to our standard high comp piston and an only mild increase in compression ratio over the stock Honda. This makes it more of a straight swap overhaul piston compared to most aftermarket pistons.
| B16A/B18C Engine O/H Piston KIT | ||
|
Engine Type |
B16A | B18C |
| Part No. |
13030-B16-G00
|
|
| Price (set) |
$1300.00
|
|
| Bore |
ø81.50mm
|
|
| Displacement | 1615cc | 1820cc |
| Crown Volume *1 | 4.8cc/4.8cc | 4.8cc/2.4cc |
| Projection Height *2 | ±0mm | -0.45mm |
| Reference C/R *3 | ξ≒10.7 :1 | ξ≒11.4 :1 |
| Remarks | *Connecting rod requires converting to fully floating. | |
|
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide (when TODA t=0.6mm head gasket is used), measurements are required. |
||
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Honda B series engine is still very popular around the world with lots of fans. Since the majority of these engines are of high mileage, customers can be concerned about its condition. Toda Racing has developed an overhaul (O/H) piston kit specifically for such engines. Designed with a longer skirt compared to our standard high comp piston and an only mild increase in compression ratio over the stock Honda. This makes it more of a straight swap overhaul piston compared to most aftermarket pistons.
| B16A/B18C Engine O/H Piston KIT | ||
|
Engine Type |
B16A | B18C |
| Part No. |
13030-B16-G00
|
|
| Price (set) |
$1300.00
|
|
| Bore |
ø81.50mm
|
|
| Displacement | 1615cc | 1820cc |
| Crown Volume *1 | 4.8cc/4.8cc | 4.8cc/2.4cc |
| Projection Height *2 | ±0mm | -0.45mm |
| Reference C/R *3 | ξ≒10.7 :1 | ξ≒11.4 :1 |
| Remarks | *Connecting rod requires converting to fully floating. | |
|
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide (when TODA t=0.6mm head gasket is used), measurements are required. |
||
