K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series
HomeStore

K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series

K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series

$206.99
K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series—
$206.99

The Story

K-tuned wanting to release something like this for a long time now. They finally had some time to devote and are very pleased with the results. Made with high quality aluminum, the K-Tuned Oil Sandwich Plate not only allows you to run an aftermarket oil cooler on your K series, but also corrects a few issues we have seen over the years with other similar products that we wanted to eliminate.

First, Ktuned wanted to ensure the spout would never back out while loosening an oil filter as we have seen with others. Their design utilizes a set screw to lock the center spout and the plate together so even the most stubborn of filters should not bring the plate off with it. They also opted to add a designated hook for those that want to run a wire to hold their filter in place. Their plate features a thermostatic port for someone that may not be using this in a dedicated race car. This allows the oil to bypass the cooler until proper oil operating temp (180 degrees) is reached. This plate uses -10 AN fittings that are keyed with pins to avoid the possibility of them coming loose when installing or removing your cooler lines. The 2 auxiliary 1/8th NPT ports are labeled "NFO" meaning NON FILTERED OIL, which could be used for any oil related sensors.

Applications:
  • Most K-Series Engines

Features:

  • Integrated Thermostatic Port
  • 2 x 1/8 NPT port (Non Filtered Oil)
  • Anodized Black
  • Keyed and Pin Lock AN Fittings
  • Will not fit K20C-Series blocks
  • Can fit on K24Z-Series blocks with a oil filter relocation kit
K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

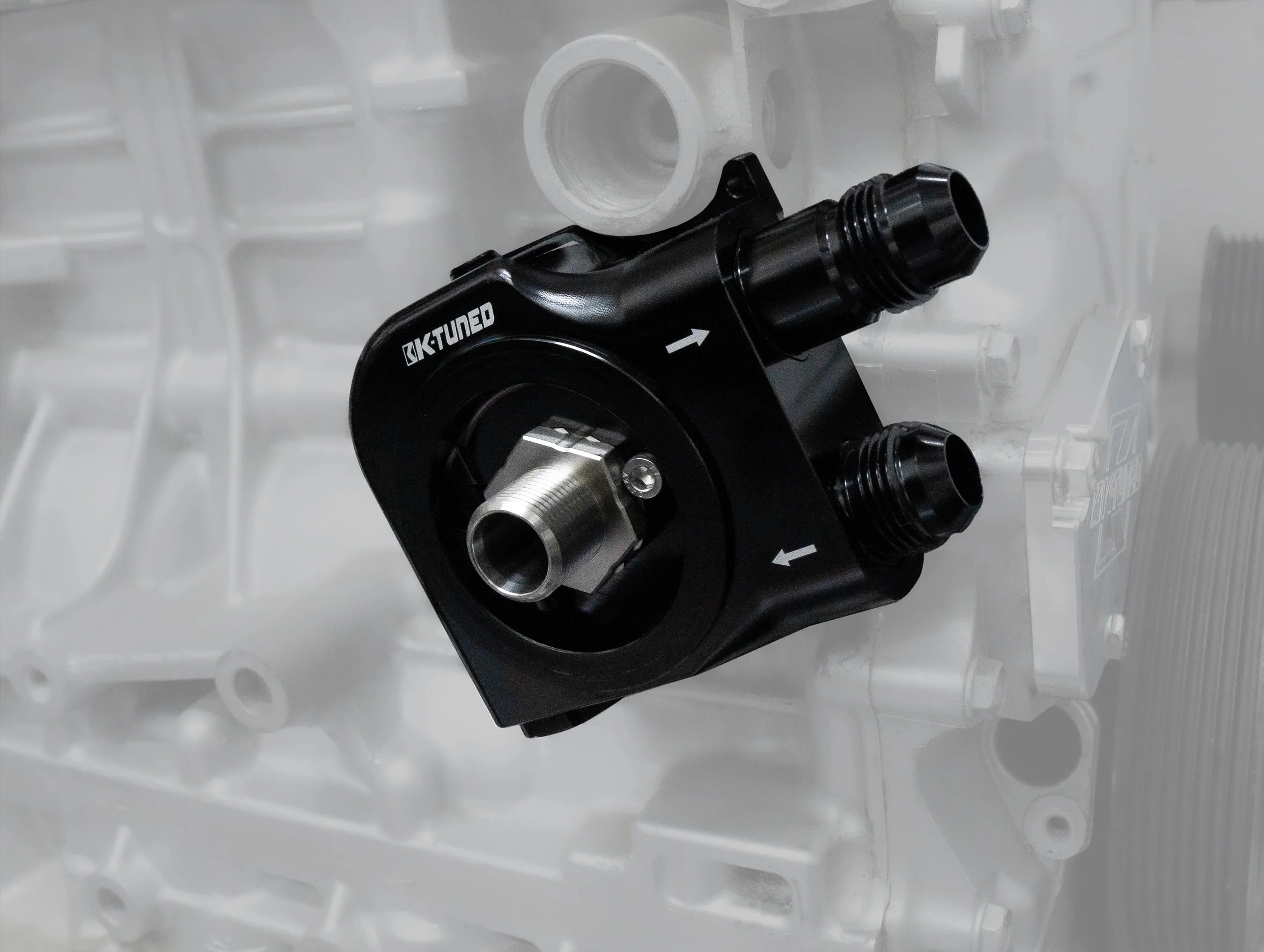

K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

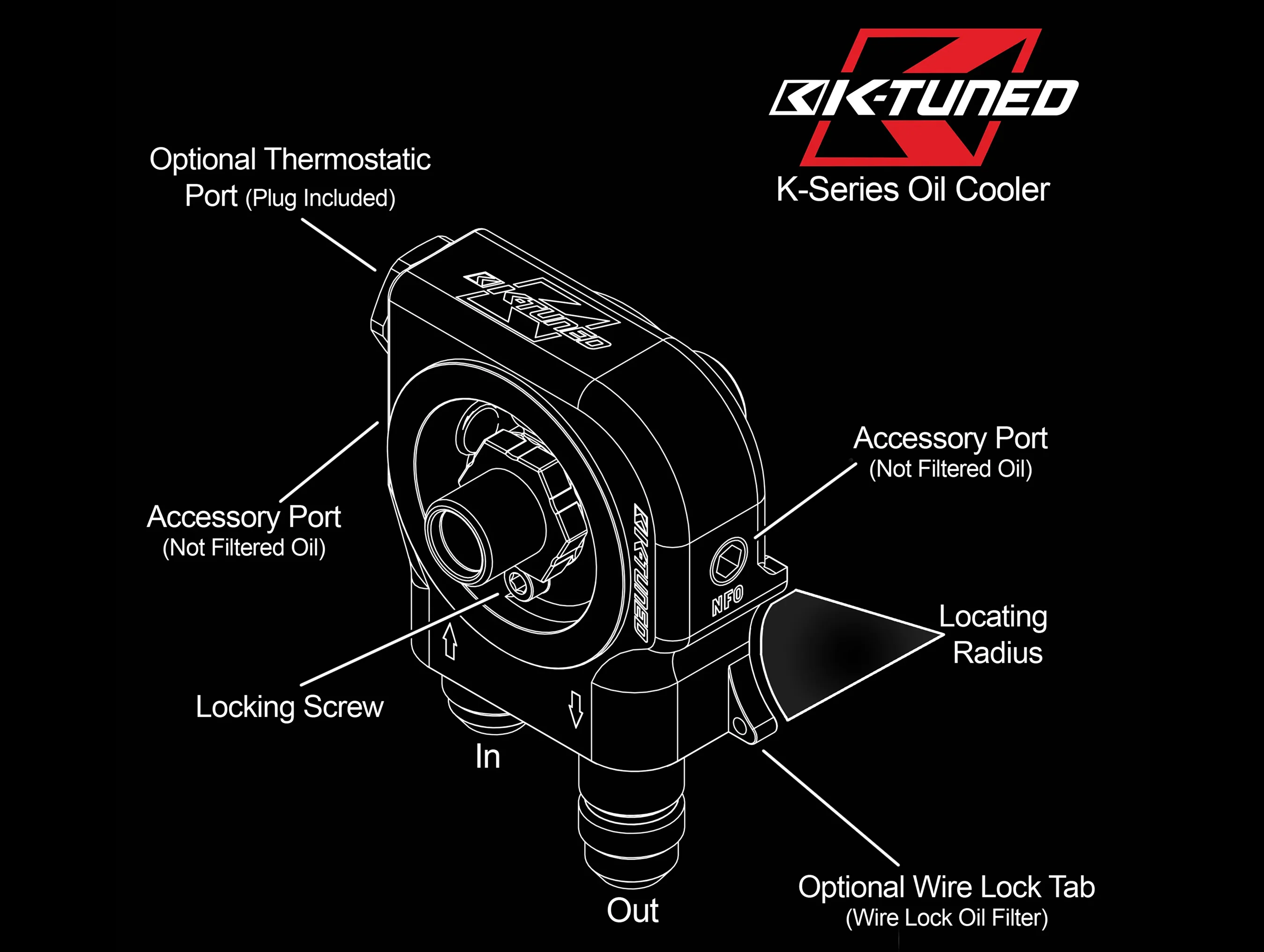

K-Tuned Oil Cooling Sandwich Adapter Plate - K-Series - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

K-tuned wanting to release something like this for a long time now. They finally had some time to devote and are very pleased with the results. Made with high quality aluminum, the K-Tuned Oil Sandwich Plate not only allows you to run an aftermarket oil cooler on your K series, but also corrects a few issues we have seen over the years with other similar products that we wanted to eliminate.

First, Ktuned wanted to ensure the spout would never back out while loosening an oil filter as we have seen with others. Their design utilizes a set screw to lock the center spout and the plate together so even the most stubborn of filters should not bring the plate off with it. They also opted to add a designated hook for those that want to run a wire to hold their filter in place. Their plate features a thermostatic port for someone that may not be using this in a dedicated race car. This allows the oil to bypass the cooler until proper oil operating temp (180 degrees) is reached. This plate uses -10 AN fittings that are keyed with pins to avoid the possibility of them coming loose when installing or removing your cooler lines. The 2 auxiliary 1/8th NPT ports are labeled "NFO" meaning NON FILTERED OIL, which could be used for any oil related sensors.

Applications:
  • Most K-Series Engines

Features:

  • Integrated Thermostatic Port
  • 2 x 1/8 NPT port (Non Filtered Oil)
  • Anodized Black
  • Keyed and Pin Lock AN Fittings
  • Will not fit K20C-Series blocks
  • Can fit on K24Z-Series blocks with a oil filter relocation kit
