Function7 Brake Master Cylinder Booster Delete Plate + Wilwood Brake Master Cylinder

This kit allows you to convert your factory power brakes to manual booster powered brakes.

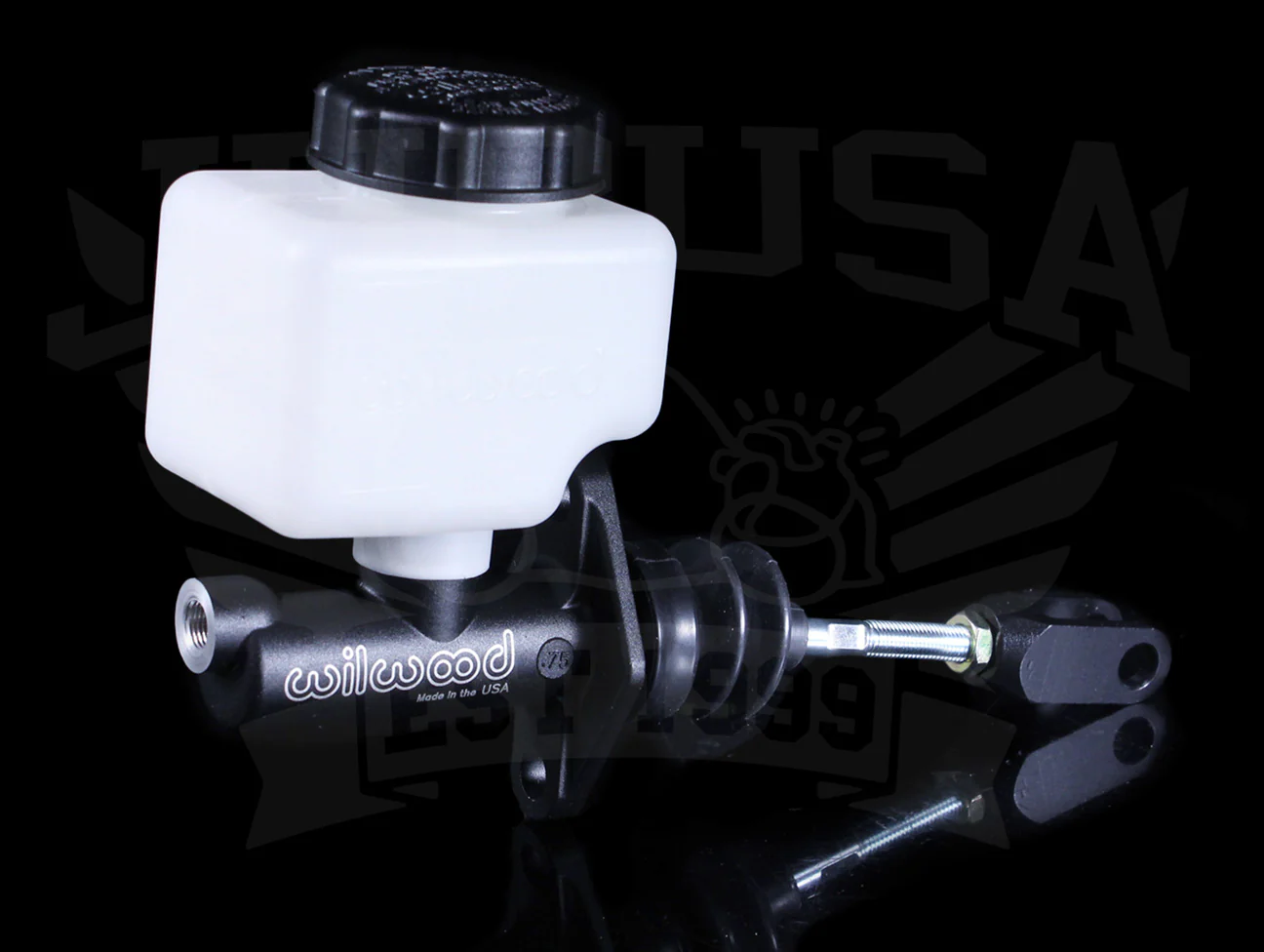

Wilwood’s 3/4 Bore Compact Brake Master Cylinder has been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

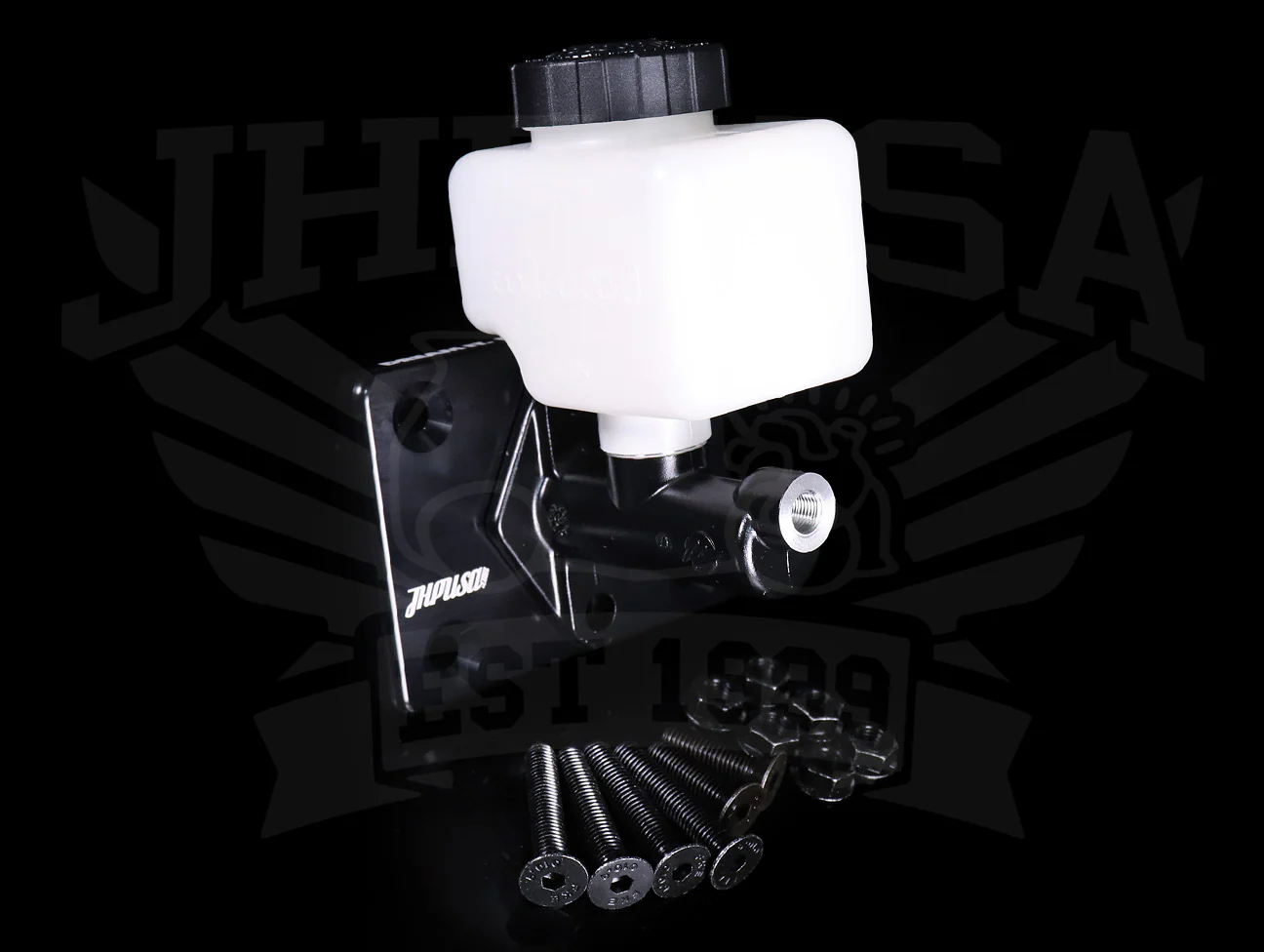

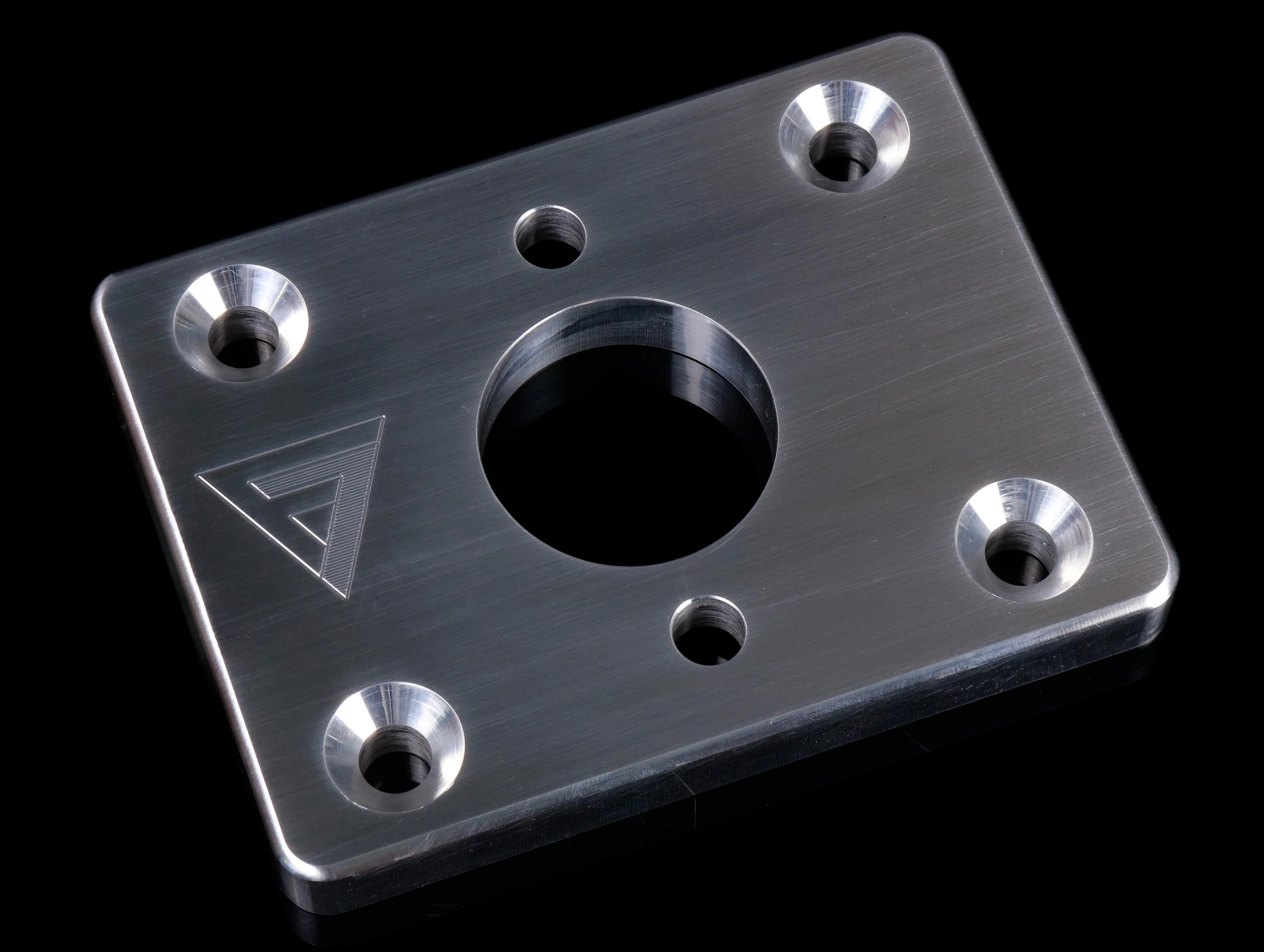

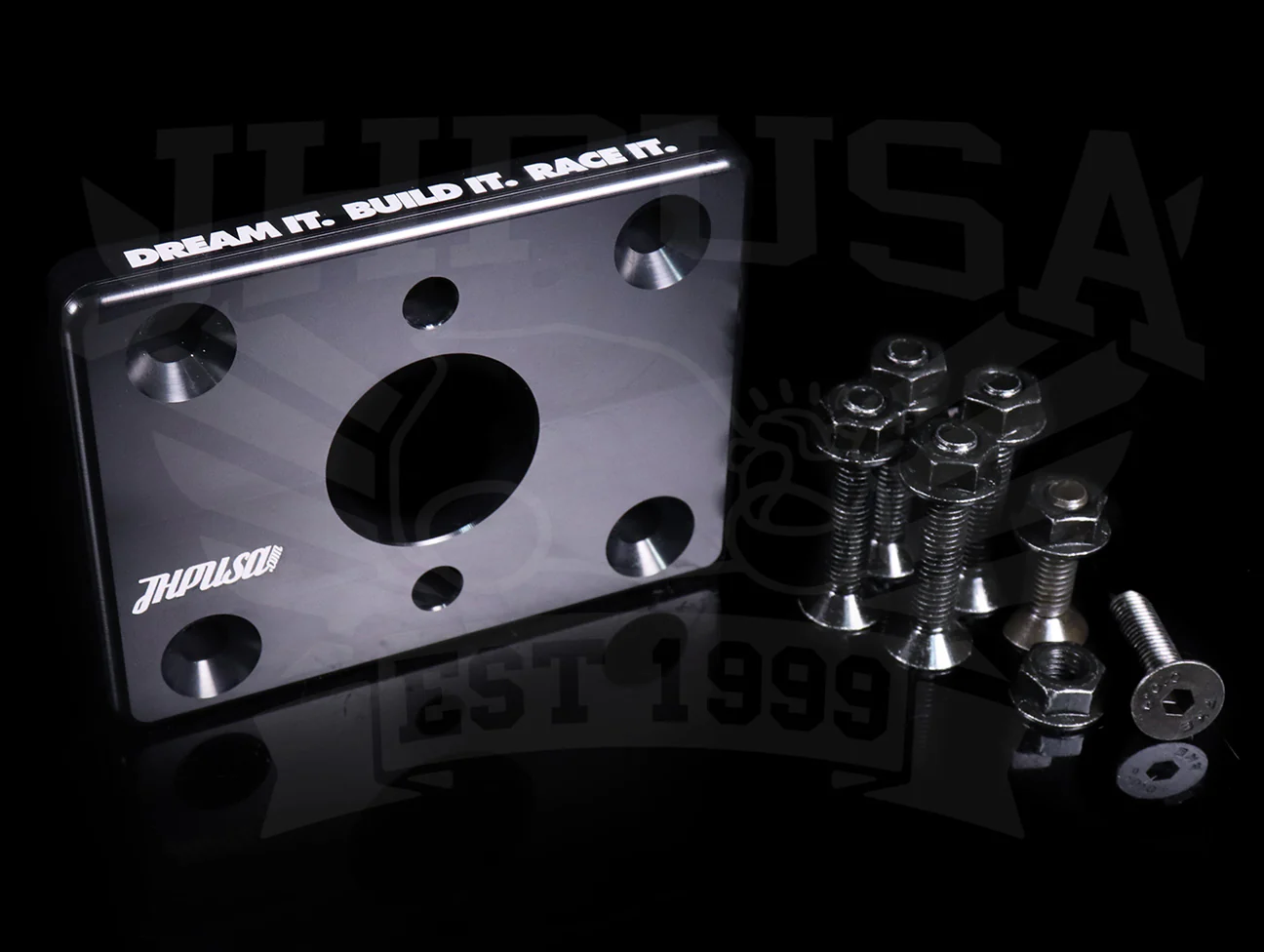

We've paired the Wilwood compact BMC with the Function7 BMC delete plate. The Function7 BMC delete plate is a must for your tucked engine bay project! Constructed of high quality aircraft billet 6061-T6 aluminum and precision CNC machined to perfection. Featuring our updated laser engraved F7 logo on the front lower left face, with rounded edges, and available in a silver mirror finish...you can proudly know you are running a great product! Lastly, the Function7 BMC delete plate is made in the USA.

Features

• Engraved F7 logo on plate face
• Silver Mirror finish
• Constructed of high-quality aircraft billet 6061-T6 aluminum
• Precision CNC machined to perfection w/ rounded edges
• Hardware included
• Made in the USA!

Vehicle applications: 88-91 Civic/CRX, 92-00 Civic, 92-97 Delsol, 90-01 Integra, may fit other Honda models as well (accord/prelude/etc).

Wilwood Compact BMC available with or without clevis.

Note: Custom made proportioning valve lines will be required. Reusing OEM hardlines will not work.
