AiM Sports MXP Strada 6" Dash Display

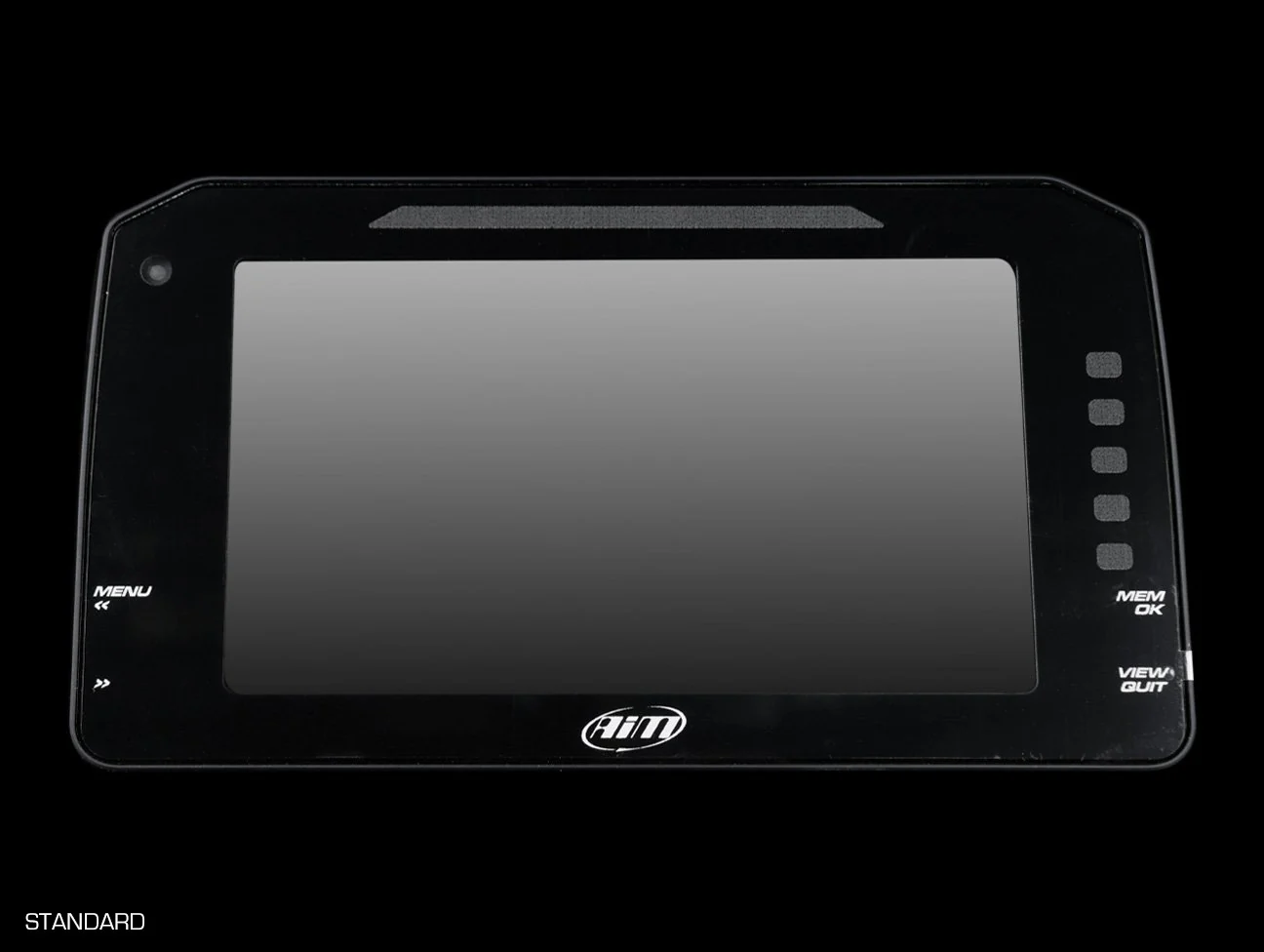

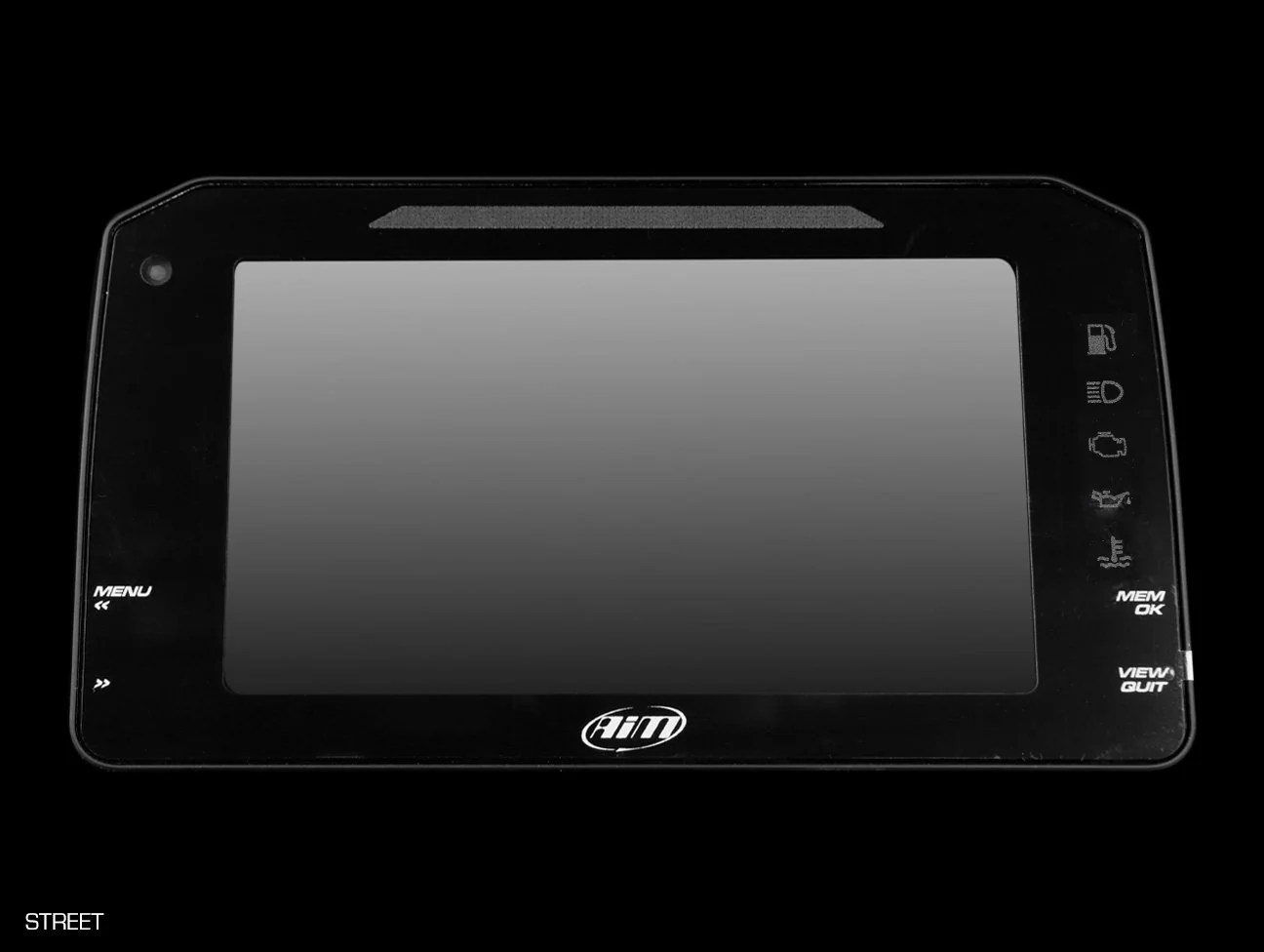

Aim MXP Strada is the the evolution of MXP Strada which is a 6″ TFT color display with great visual impact. It is configurable to show lap times and all the info coming from the Engine Control Unit like analog/digital inputs, pre-defined math channels and optionally, the GPS08 Module.

Kit Includes:

• MXP Strada, USB cable, 14 pins standard harness, 23 pin connector + contacts, Race Studio 3 software.

Specifications:

• Display: 6” TFT

• Resolution: 800×480 pixels

• Contrast: 600:1

• Brightness: 700cd/m2 – 1,100 Lumen

• Ambient light sensor: Yes

• Alarm display icons: Yes, freely configurable

• Shift lights: 10 integrated freely configurable RGB LEDs

• Alarm LED: 5 integrated freely configurable RGB LEDs

• CAN connections: 3

• ECU connection: CAN, RS232 or K-Line

• ECU compatibility: 1,000+ industry leading ECUs

• Expansion CAN connection: GPS Module, Channel Expansion, Thermocouples expansions,Lambda Controller, SmartyCam HD

• Analog inputs: 8 fully configurable, max 1,000 Hz each

• Digital inputs: 1 Speed input, coil RPM input

• Digital outputs: 1 (1 A max)

• Second CAN: Yes

• Body: Anodized Aluminum

• Pushbuttons: Metallic

• Connectors: 2 AMP connectors

• Power consumption: 400 mA

• Dimensions: 189.6 x 106.4 x 24.9 mm

• Weight: 640 g

• Waterproof: IP65
