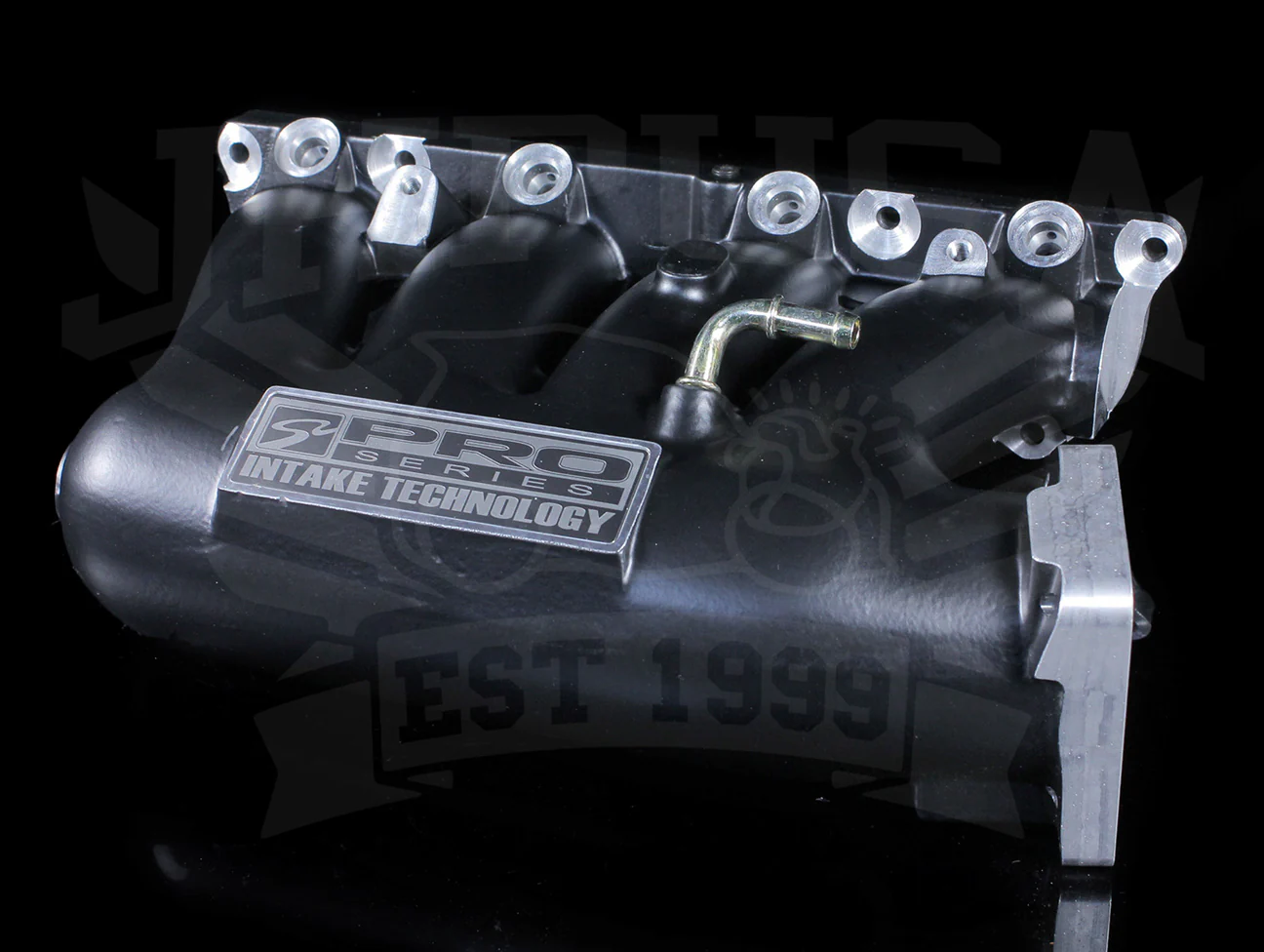

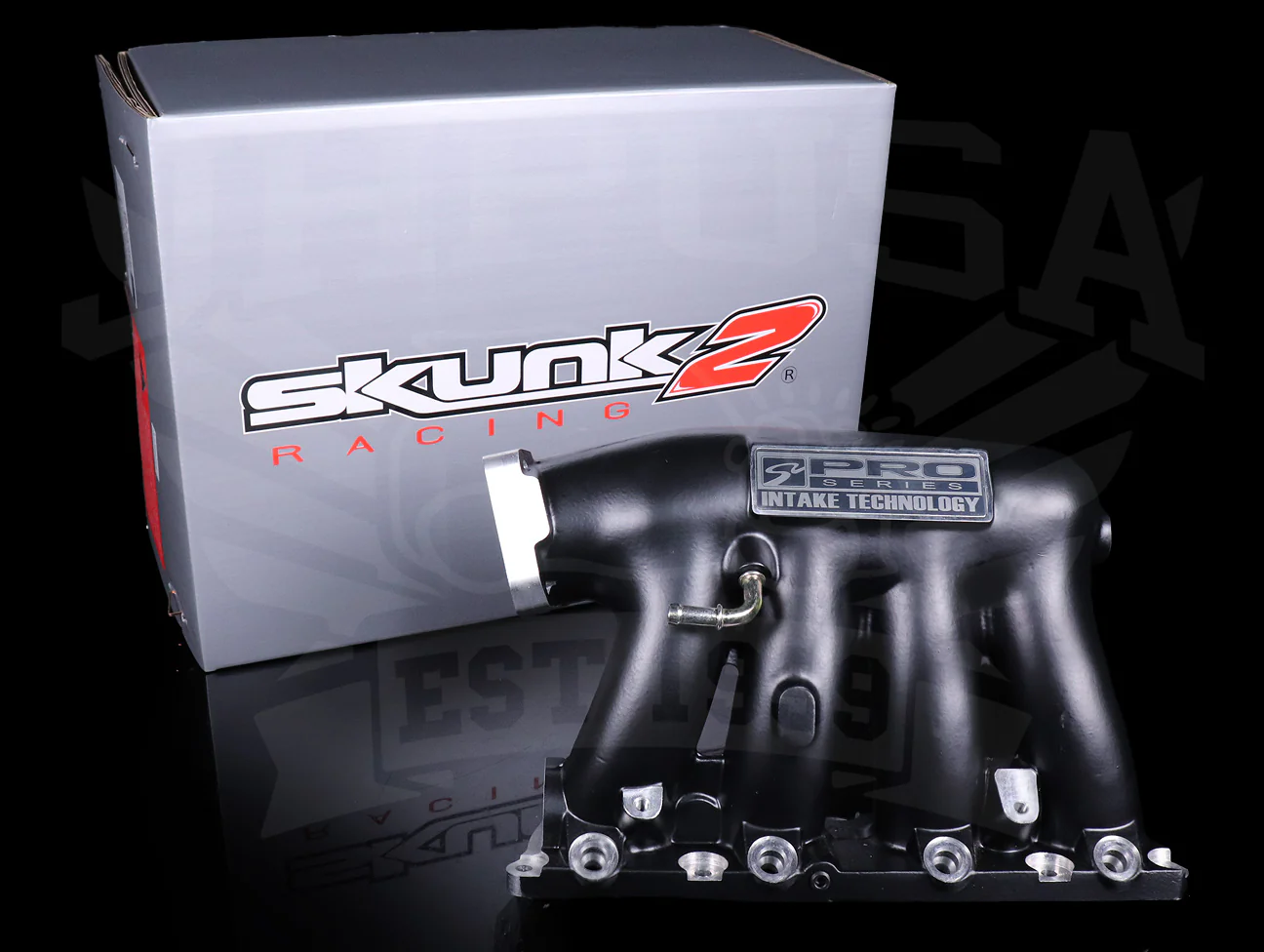

Skunk2 Pro Series Intake Manifold - Black - K-series / 06-11 Civic Si (K20Z3)

Skunk2's Pro Series Intake Manifold for Honda's K-series features a larger plenum and shorter, over sized runners when compared to the RBC, and is cast with thicker wall material, leaving room for further porting for high-horsepower applications. Instead of producing a manifold with a significantly over sized plenum and excessively short runners that would sacrifice mid-range power, the Pro Series manifold was designed for the street enthusiast who want more power but doesn't want to sacrifice mid-range performance to get it. The results are improved airflow, an enhanced venturi effect, and both mid-range and top-end power gains.

Pro Series Intake Manifolds offer horsepower and torque gains greater than the popular RBC manifold but without compromising mid-range power output. The design incorporates runners that are similar in length to the RBC's but with larger bores, a special tapered design, as well as a larger, tapered plenum that together preserve mid-range power but increase and accelerate airflow to allow for significant top-end power gains. Pro Series Intake Manifold runner exits are also machined and hand-finished to best match the cylinder head's ports. Skunk2's Pro Series intake manifold's shape and design also increases wave scavenging effects at the engine's ideal operating range, which allow for a broad increase in usable power.

Features

• Black series finish
• Increased Mid-Range and Top-End HP and Torque
• Unique Water Neck Adapter Eliminates Cutting
• 70mm Throttle Body Bore
• Compatible With Up To 76mm Throttle Bodies
• Thermal-Insulated Gasket Included
• No Throttle Body Adapter Required
• Angled Design for K-Swap Hood Clearance
• High-Grade, 356-Aluminum Construction
• OEM-Quality, Shell-Molded Casting
• Skunk2 Nameplate
• Vacuum-Tested for Quality
• OEM Sensor Provisions
• Made specifically for the 06-11 Civic Si K20Z3 cylinder head w/drive-by-wire throttle body compatibility

Vehicle/Engine applications: 06-11 Civic Si (K20Z3) & 04-08 TSX (K24A2)

Vehicle Application Notes

• Specifically made for the 06-11 Civic Si (K20Z3) RBC & 04-08 TSX (K24A2) RBB style heads & drive-by-wire throttle body use.
• May also fit 03-11 Accord K24Ax & Element K24Ax style heads too (with side-angle mounted water neck).

Images used for illustration purposes.
